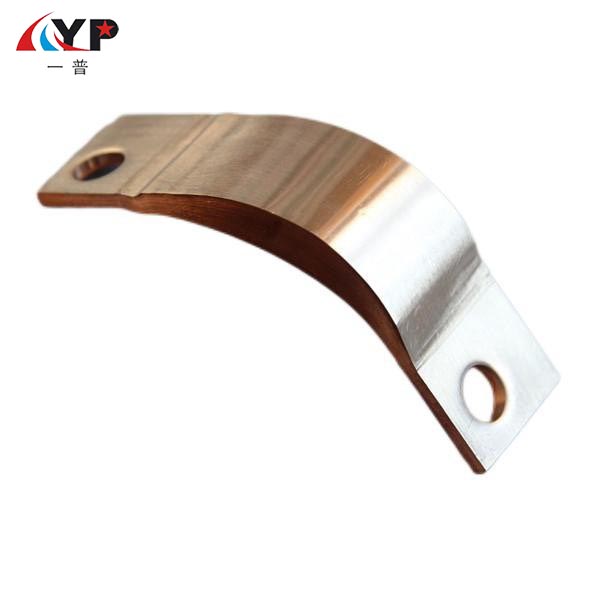

Our Flexible Copper Laminated Foil Connector is a versatile and reliable component that has numerous applications across a wide range of industries. It is made of high-quality copper laminated foil, which provides excellent conductivity and resilience, making it ideal for use in a variety of electrical and mechanical applications. Our product can be bent and shaped to fit into tight spaces or accommodate unusual angles, providing greater flexibility and versatility in use.
1. High conductivity: Copper foil connectors are made of high-quality copper laminated foil with excellent conductivity. High conductivity ensures minimal energy loss during transmission or distribution, thereby improving efficiency, reducing costs, and enhancing performance.
2. Flexible design: Copper foil connectors can bend and contour to fit into tight spaces and accommodate unusual angles. This flexibility makes them highly suitable for use in a range of electrical and mechanical applications that require limited space or installation in challenging environments.
3. Resilience: Copper foil connectors are durable and long-lasting. They can handle a large amount of vibration, temperature changes, and mechanical stress without compromising performance, making them highly suitable for use in harsh conditions or challenging environments.
4. Easy to install: Copper foil connectors are easy to install and require minimal tools or equipment. They come with pre drilled holes, making it easy to connect to other components or fixtures.
1. Electronics and automation: Our connectors are ideal for use in electronic circuits, automation machines, and control panels. They provide an easy and efficient way of transmitting signals, power, and data across different circuitry components.
2. Renewable energy: Our connectors are also ideal for use in solar panels, wind turbines, and other renewable energy systems. The high conductivity and resilience make them ideal for handling fluctuating energy currents and voltage levels, ensuring the system's stability and reliability.
3. Aerospace and aviation: Our connectors are also ideal for use in aerospace and aviation applications. The flexible design and high resilience ensure that they can handle the vibration and pressure of high-altitude flights and the temperature and stress variations of space travel.
4. Automotive and transportation: Our connectors are perfect for use in automotive and transportation applications. The high conductivity and resilience ensure that they can handle the vibration and mechanical stress of moving parts, ensuring the safe and efficient operation of vehicles.
Our Flexible Copper Laminated Foil Connector is an excellent investment for anyone looking for a versatile and reliable component for various applications. With its high conductivity, flexibility, and resilience, it provides an easy and efficient way of transmitting power, signals, and data across different components and machines. Contact us today to learn more about our product and how it can benefit your operations.

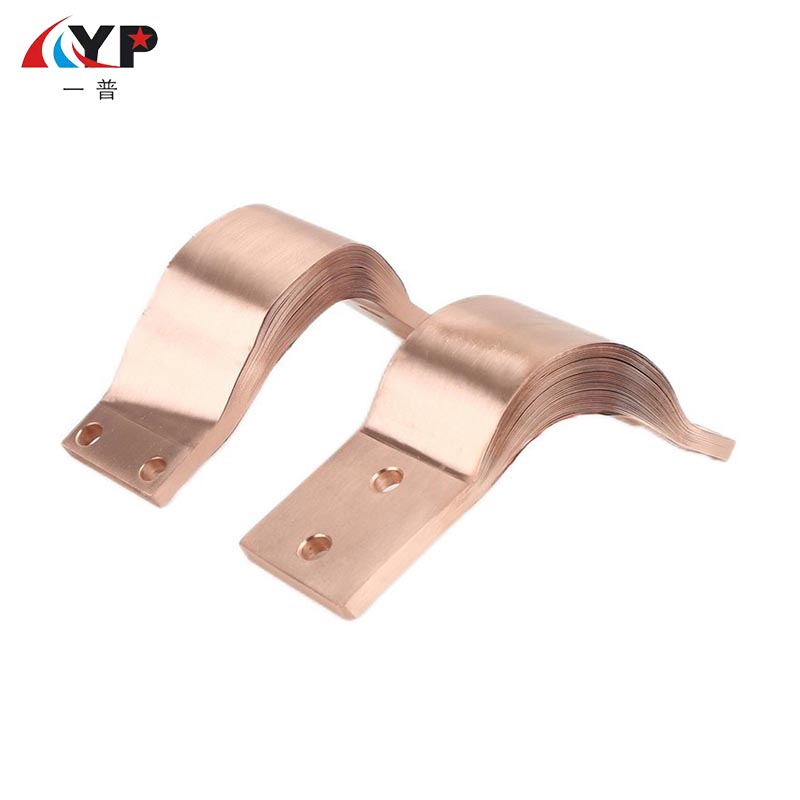

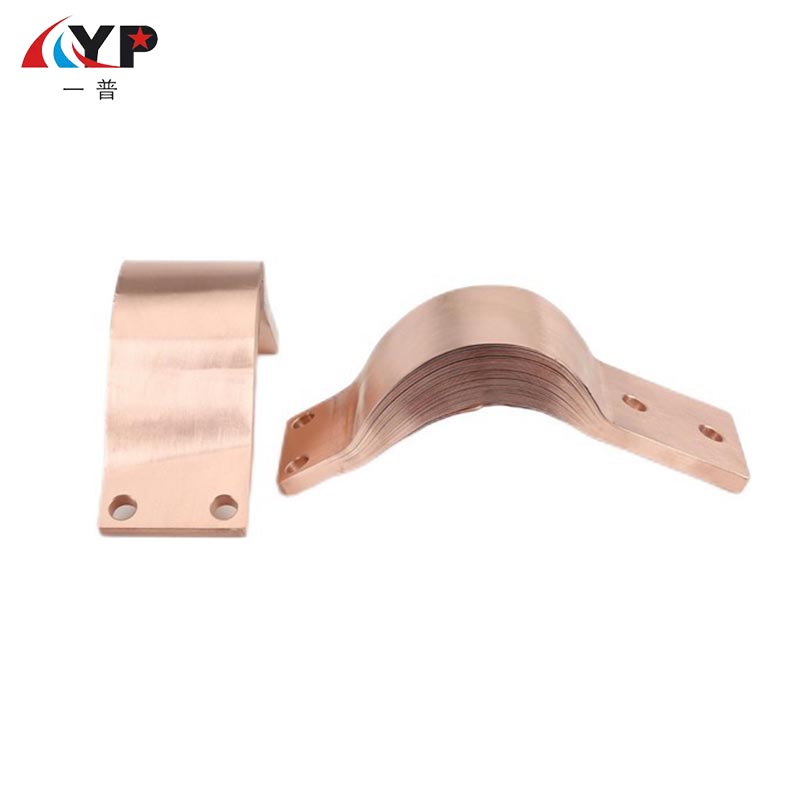

Laminated copper busbar flexible connector
Copper busbar flexible connectors ( also called busbar expansion joint, copper foil flexible laminated busbar connector ) is also called copper sheet soft connection, busbar expansion joint. It is a kind of flexible connection to compensate the deformation and vibration deformation caused by temperature change.
Most of the laminated copper foil connectors are customized according to the drawing.
Material: C11000 copper foil, copper content ≥ 99.95%
Single Foil Thickness:
0.03mm
0.05mm
0.10mm (standard)
0.20mm
0.30mm
0.40mm
0.50mm
Finish: no plating, tin plating, nickel plating, silver plating
Cross Sectional Area: 1.5mm2 - 5000mm2
Length (L)×Width (W)×Thickness (T)
Connector Shape & Hole Type
Hole Diameter (d)
Single Foil Thickness （default 0.10mm）
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.
The manufacturing process of copper foil soft joint is pressure welding or brazing welding.

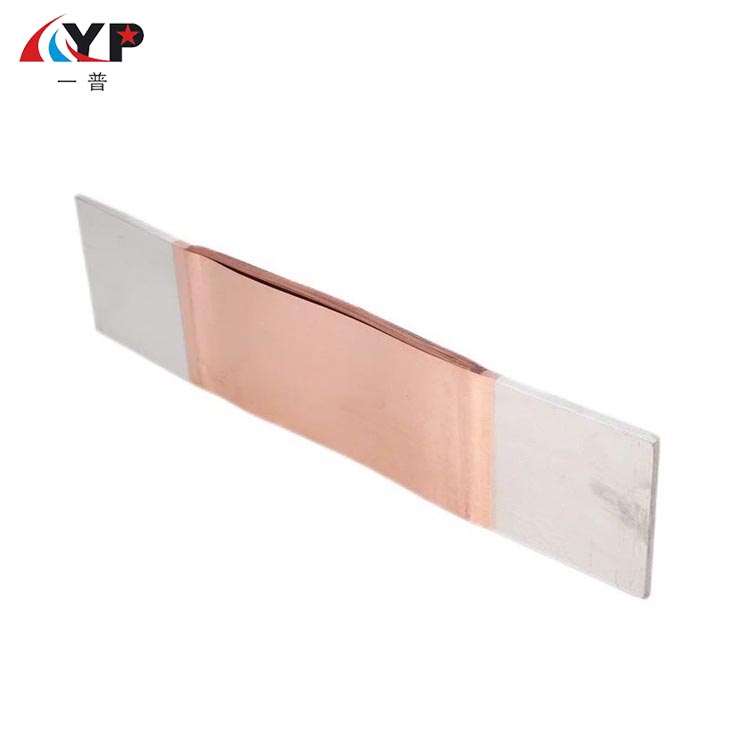

Pressure welding , that is to press the copper strips or aluminum strips together firstly then use the molecular diffusion
technology to weld such strips to be an integrity by high current heating.
Thickness of copper strip and aluminum strip： 0.05mm to0.3mm.
Remarks: the contact surface can be tinned, nickel plated or silver plated according to the user's requirements （except for aluminum strip).
1. Good heat dissipation, auxiliary cooling effect.
2. It can avoid the operation accidents caused by earthquake and displacement.
3. It makes the conductive connection between high current equipment more convenient, reliable and safe, and protects the associated equipment from external force.
4.Easy installation, high electrical rate, energy saving, low connection resistance, good electrical conductivity, strong anti fatigue ability, long service life and maintenance free.
With our dedicated inspection equipment, we will gladly provide you a report on each of your products. The quality of copper wires of ZHEJIANG YIPU METAL MANUFACTURING CO., LTD. is absolutely guaranteed. You can buy them safely.
● We strive to maintain the highest level of customer satisfaction through continuous improvement.
● In order to make the quality of our Flexible Copper Laminated Foil Connector catch up with the world-class level, we make great efforts to improve and give full play to the advantages of advanced technology.
● Our team is dedicated to providing excellent customer service and technical support.
● We always adhere to the high standards and strict requirements of product quality, in accordance with the enterprise principle of survival by price and development by quality.
● We have a strict quality assurance process in place to ensure every product meets our standards.
● We build an ambitious, responsible and respected team, and construct an international operation with industry competitiveness.
● Our Copper Flexible Connectors are made to withstand extreme temperatures and conditions.
● Our talent strategy focuses on building a well-defined hierarchy, reasonable structure, coordinated ratio, and a talent ladder that is compatible with the development strategy of the Group and moderately ahead of the competition.
● Our company has a strong commitment to quality control and product testing.
