As a manufacturer located in China, we offer high-quality products at affordable prices to merchants in countries outside of China. Our tinned copper wire is the perfect solution for any project requiring a reliable and durable conductor. In this product introduction, we will outline the key features and benefits of our tinned copper wire, showcase our superior manufacturing process, and highlight the advantages of doing business with us.
Our tinned copper wire is manufactured to the highest standard, ensuring that it meets the stringent requirements of the industry. Here are some key features that set our product apart from the competition:
1. Corrosion resistance: The tinning process, which involves coating the copper wire with a thin layer of tin, enhances its resistance to corrosion. This makes it suitable for use in harsh environments where the wire is exposed to moisture and other corrosive elements.
2. High conductivity: Copper is an excellent conductor of electricity, and our tinned copper wire offers maximum electrical conductivity. This ensures that the wire can transmit electrical signals with minimal loss or interference, making it ideal for use in electronic circuits.
3. Durability: Our tinned copper wire is designed to last, with a robust construction that can withstand the rigors of daily use. It is resistant to mechanical stress, bending, and twisting, ensuring that it retains its shape and functionality over time.
Our tinned copper wire is manufactured using state-of-the-art technology and techniques, ensuring that it meets the highest quality standards. Here are some of the steps involved in the manufacturing process:
1. Drawing: The first step in the manufacturing process is drawing the copper wire from raw copper stock. The wire is pulled through a series of dies to reduce its diameter to the desired size.
2. Annealing: The wire is then annealed, which involves heating it to a specific temperature and then allowing it to cool slowly. This process softens the wire and makes it more malleable.
3. Tinning: The wire is then coated with a layer of tin, which enhances its conductivity and provides corrosion resistance.
4. Inspection: Before packaging, the wire undergoes rigorous inspection to ensure that it meets our quality standards. This includes checking for defects, measuring the diameter, and testing the electrical conductivity.
As a manufacturer located in China, we offer several advantages to merchants looking to source high-quality products at a reasonable price. Here are some of the benefits of doing business with us:
1. Competitive pricing: As a manufacturer, we can offer our products at a significantly lower price than our competitors. We have access to raw materials at lower prices, and our efficient manufacturing process enables us to keep costs low.
2. Customization: We can customize our tinned copper wire to meet your specific requirements. This includes wire diameter, tinning thickness, and packaging options.
3. Quality assurance: We take quality control seriously, and our tinned copper wire undergoes rigorous testing to ensure that it meets the highest industry standards.
4. Reliable delivery: We prioritize timely delivery, and our logistics team works hard to ensure that your orders are delivered on time and in good condition.
Our tinned copper wire is the ideal solution for any project requiring a reliable and durable conductor. With its corrosion resistance, high conductivity, and durability, it is sure to exceed your expectations. We take pride in our superior manufacturing process and the quality of our products, and we are committed to providing our clients with exceptional customer service. Contact us today to learn more about our tinned copper wire and how we can help you meet your business needs.
|
Material |
T1 copper (or T2, T3, TU1, TU2 etc.) |
Main Process |
cut,punch,stamp,drill,twist,test |
|
Busbar thickness |
1mm,2mm,3mm or other |
Insulation |
heat shrink sleeve/pvc dip/bare copper |
|
Other dimension |
as to confirmed drawing |
Surface treatment |
Bare copper or tinned plated |
|
Delivery |
5-7days |
Drawing |
customized design is acceptable. |
|
OEM |
|
Advantages |

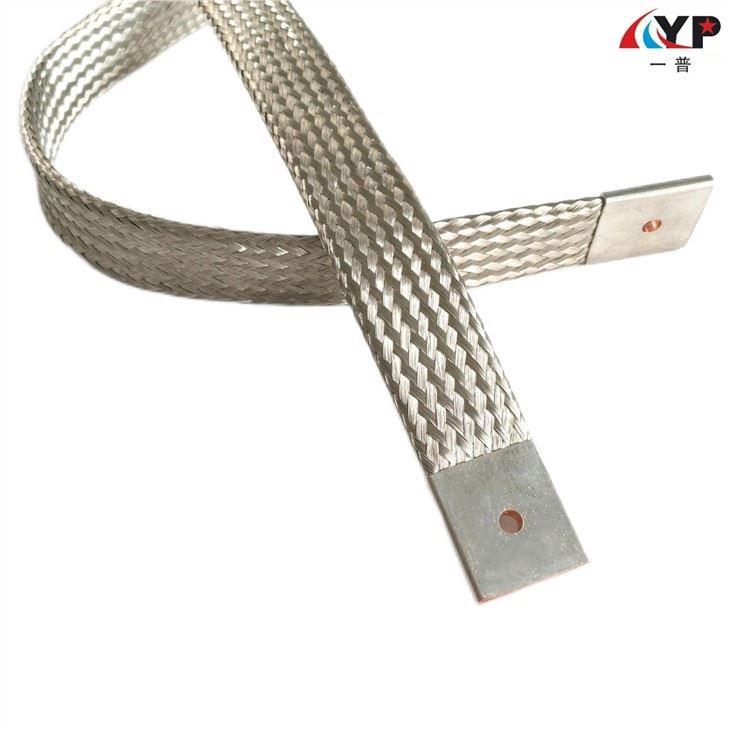

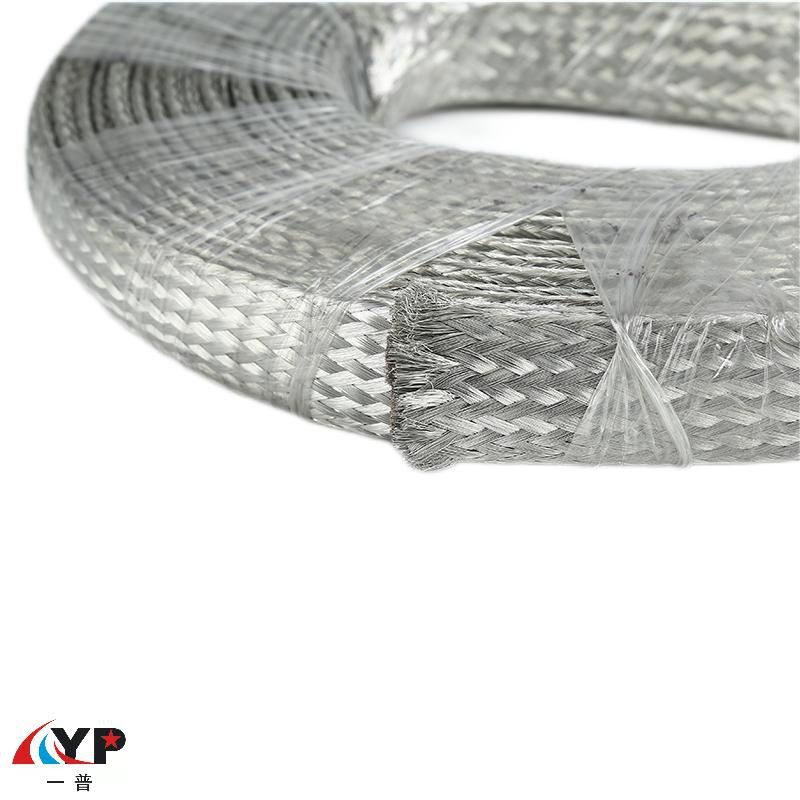

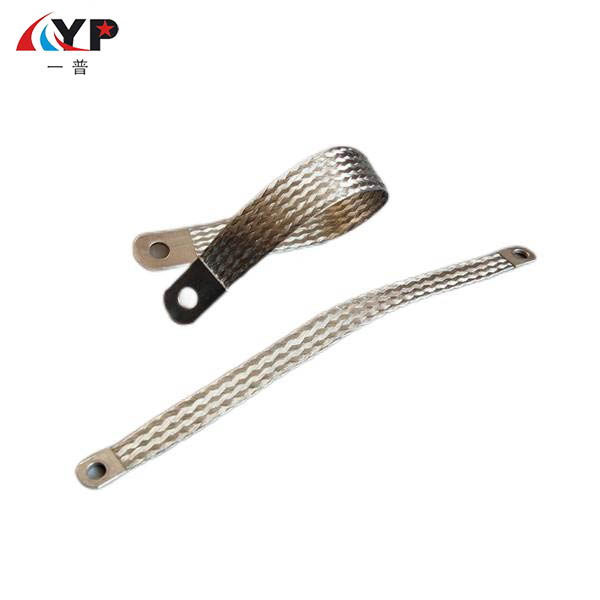

The flexible copper stranded wire is made of high quality round copper wire or tinned soft round copper wire. |
|
Warranty |
20 years |
Features |
Pure copper wire99.9% |
TS,TSX
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance Ω/km |
Calculated weight Kg/km |
||
|
The number of total single wires |
No. of strands x No.of wires Nominal diameter of a single wire(mm） |
TS |
TSX |
||||
|
0.25 |
0.242 |
63 |
7 X 9/0.07 |
1.0 |
75.5 |
81.1 |
2.28 |
|
0.315 |
0.323 |
84 |
7 X 12/0.07 |
1.1 |
56.6 |
60.7 |
3.04 |
|
0.40 |
0.404 |
105 |
7 X 15/0.07 |
1.2 |
45.2 |
48.6 |
3.81 |
|
0.50 |
0.512 |
133 |
7 X 19/0.07 |
1.3 |
35.7 |
38.3 |
4.82 |
|
0.63 |
0.620 |
161 |
7 X 23/0.07 |
1.5 |
29.5 |
31.6 |
5.84 |
|
0.80 |
0.808 |
210 |
7 X 30/0.07 |
1.6 |
22.6 |
24.3 |
7.61 |
|
1.00 |
0.990 |
1 26 |
7 X 18/0.10 |
1.8 |
18.5 |
19.3 |
9.33 |
|
1.25 |
1.264 |
161 |
7x23/0.10 |
2.0 |
14.5 |
15.1 |
11.9 |
|
1.6 |
1.594 |
203 |
7x29/0.10 |
2.2 |
11.5 |
12.0 |
15.0 |
|
2.0 |
1.979 |
252 |
7x36/0.10 |
2.4 |
9.23 |
9.65 |
18.6 |
|
2.5 |
2.47 |
315 |
7x45/0.10 |
2.7 |
7.39 |
7.72 |
23.3 |
|
3.15 |
3.134 |
399 |
7x57/0.10 |
3.0 |
5.83 |
6.09 |
29.5 |
|
4.0 |
3.958 |
504 |
7x72/0.10 |
3.3 |
4.62 |
4.83 |
37.3 |
|
5.0 |
4.948 |
630 |
7x90/0.10 |
3.8 |
3.96 |
3.73 |
46.6 |
|
6.3 |
6.243 |
552 |
12x46/0.12 |
4.3 |
2.94 |
3.07 |
59.1 |
|
8 |
7.872 |
696 |
12X 58/0.12 |
4.8 |
2.33 |
2.44 |
74.5 |
|
10 |
10.04 |
888 |
12 X 74/0.12 |
5.3 |
1 .83 |
1.91 |
95.1 |
|
12.5 |
12.46 |
1102 |
19x 58/0.12 |
5.9 |
1 .48 |
1.55 |
118.5 |
|
16 |
15.90 |
1406 |
19x74/0.12 |
6.7 |
1 .16 |
1.21 |
151.2 |
TSR
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance |
Calculated weight Kg/km |
||
|
The number of total single wires |
Number of strands x No.of wires Nominal diameter of a single wire(mm) |
TS |
TSX |
||||
|
0.063 |
0.0628 |
32 |
32/0.05 |
0.5 |
288 |
0.586 |
|
|
0.08 |
0.0785 |
40 |
40/0.05 |
0.55 |
231 |
0.733 |
|
|
0.10 |
0.0982 |
50 |
50/0.05 |
0.6 |
184 |
0.917 |
|
|
0.125 |
0.124 |
63 |
63/0 05 |
0.65 |
146 |
1.16 |
|
|
0.16 |
0.165 |
84 |
7X12/0.05 |
0.7 |
111 |
1.55 |
|
|
0.20 |
0.206 |
105 |
7 X 15/0.05 |
0.8 |
88.7 |
1.92 |
|
|
0.25 |
0.247 |
126 |
7 X 18/0.05 |
1.0 |
74.0 |
2.33 |
|
|
0.315 |
0.316 |
160 |
7X 23/0.05 |
1.1 |
57.8 |
2.95 |
|
|
0.40 |
0.399 |
203 |
7 X 29/0.05 |
1.2 |
45.8 |
3.76 |
|
|
0.50 |
0.495 |
252 |
12 X 21/0.05 |
1.3 |
37.0 |
4.69 |
|
|
0.63 |
0.636 |
324 |
12 X 27/0.05 |
1.5 |
28.9 |
6.02 |
|
|
0.80 |
0.801 |
408 |
12 X 34/0.05 |
1.6 |
22.9 |
7.58 |
|
|
1.00 |
0.990 |
504 |
12 X 42/0.05 |
1.8 |
18.6 |
9.37 |
|
|
1.25 |
1.268 |
646 |
19 X 34/0.05 |
2.0 |
14.5 |
12.1 |
|
|
1.6 |
1.567 |
798 |
19 X 42/0.05 |
2.2 |
11.8 |
14.9 |
|
|
2.0 |
2.015 |
1026 |
19 X 54/0.05 |
2.4 |
9.16 |
19.2 |
|
|
2.5 |
2.500 |
1273 |
19x67/0.05 |
2.7 |
7.38 |
23.8 |
|
|
3.15 |
3.144 |
817 |
19 X 43/0.07 |
3.0 |
5.87 |
29.9 |
|
|
4.0 |
4.022 |
1045 |
19 X 55/0.07 |
3.3 |
4.59 |
38.3 |
|
|
5.0 |
1.927 |
1292 |
19 X 68/0.07 |
3.8 |
3.71 |
47.3 |
|
|
6.3 |
6.288 |
1634 |
19 X 86/0.07 |
4.3 |
2.93 |
59.8 |
|
Q:Can it be customized according to our drawings?
A:As long as you send us the drawings that need to be customized, we can give you the best quotation.
Attention, please provide copper standard, related process requirements and order quantity.
Q:Can you provide samples?
A:We can provide samples, but it is by no means free. Our sample prices vary with the complexity of the product, but you will be satisfied. If you are satisfied with the sample and have a large order, we will subtract the sample overhead from the order amount.
1. We own R&D team more than 5 engineers ,give you strongest support !
2. Fast delivery time ,we keep Long term stock for you .
3. Factory Sale - Most Competitive price than average level.
Our company has advanced test labs. Our Mechanics Laboratory can test the mechanical performances and the electrical lab can test the flammability, the insulation resistance (including surface resistance and volume resistance), arc resistance, PTI, CTI, electrical strength (perpendicular to lamination), breakdown voltage (parallel to lamination) ,partial discharging and other electrical performances of the product.
If there are any questions about ZHEJIANG YIPU METAL MANUFACTURING CO., LTD.’s products. Our engineers and/or our sales support would be happy to discuss your requirements. Give us a call!
● Our Tinned Copper Stranded Wires are cost-effective and provide superior performance.
● We have grown to be one of the leaders in China's Tinned Copper Wire Price industry, and we continue to strive to provide our customers with better products and services.
● We are dedicated to providing our customers with the highest level of service and quality products.
● The future of sustainability presents both challenges and opportunities, and our goal is to create innovative solutions with our Tinned Copper Wire Price through our operations and supply chain.
● We take pride in producing Tinned Copper Stranded Wires that are of the highest quality available.
● We are constantly embracing change to provide our customers with an efficient, simple, and dependable product and service experience.
● Our Tinned Copper Stranded Wires are designed to meet the most demanding specifications.
● All staff of the company will meet the new challenges with a new attitude, adhere to strict scientific management, maintain the effective and suitable operation of the quality management system and improve the product quality.
● Our Tinned Copper Stranded Wires feature excellent electrical conductivity for consistently high performance.
● Our rich resource advantages add impetus to our accelerated development.
