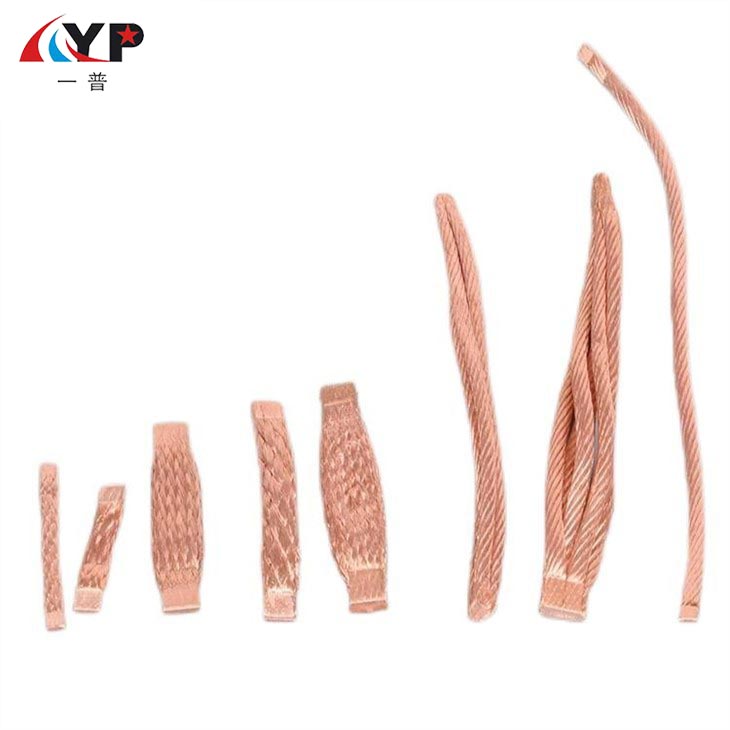

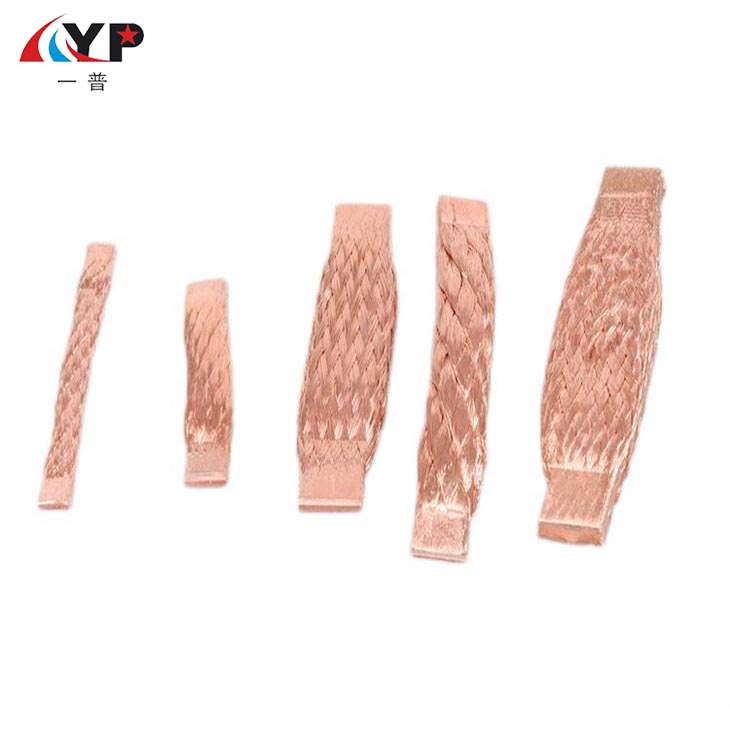

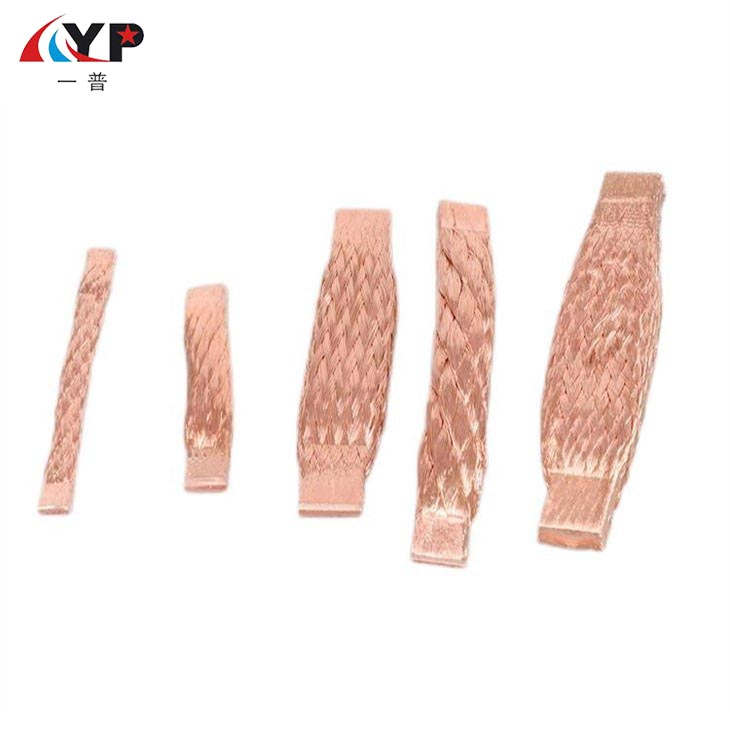

What is Copper Braids Soft Connection?
As the professional manufacturer, we would like to provide you Copper Braids Soft Connection In Electrical Systems. Copper Braids Soft Connection is a type of electrical connector that is used to connect the various components of an electrical system. It is made from high-quality copper wire, which has been braided together to form a sturdy and flexible connection. Copper soft connector is designed to be used in applications where there is a need for flexibility and a high degree of movement.
1. Copper braids soft connection is incredibly flexible, which makes it ideal for use in applications where there is a lot of movement. This flexibility ensures that the connection stays intact even with repeated bending and twisting, making it perfect for use in applications such as electric vehicles, robotics, and other motion-control applications.
2. Copper Braids Soft Connection has been specifically designed to withstand the harsh conditions that are often associated with electrical systems. The copper wire has been treated to resist corrosion and other forms of damage, ensuring that our product will last for a long time even in the toughest of conditions.
3. Copper Braids Soft Connection can be used in a wide range of applications, from residential and commercial electrical systems to automotive and aerospace applications. It is also suitable for switchs, relays, and motors.
4. Copper Braids Soft Connection has been designed to be user-friendly, which means that installation is quick and easy. This reduces the downtime associated with installing new electrical connections, allowing you to get your systems up and running quickly.
In conclusion, Copper Braids Soft Connection in Electrical Appliance is a reliable, high-quality product that is perfect for use in a wide range of applications. Our product is flexible, durable, versatile, and easy to install, making it the ideal choice for anyone looking for a soft connection solution for their electrical systems.
Transformers, electric locomotive, grounding, mining explosion-proof, vacuum contactor, wind power, new energy, automotive, construction and other industries.
1. Ensure that the copper content is above 99.9%, and the raw material is T2 copper. We can issue the detection report of copper foil raw material and the copper content of our copper foil soft connected finished products (detected by spectral analyzer).
2. Copper foil raw material is bent 150 times without breaking;
3. The temperature rise data report measured by our company can be issued;
4. Environmental tin plating and standard thickness tin plating, can provide plating test report; Using 99.99% pure tin plating material, standardized thickness test;
TS,TSX
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance Ω/km ≤ |
Calculated weight Kg/km |
||
|
The number of total single wires |
No. of strands x No.of wires Nominal diameter of a single wire(mm） |
TS |
TSX |
||||
|
0.25 |
0.242 |
63 |
7 X 9/0.07 |
1.0 |
75.5 |
81.1 |
2.28 |
|
0.315 |
0.323 |
84 |
7 X 12/0.07 |
1.1 |
56.6 |
60.7 |
3.04 |
|
0.40 |
0.404 |
105 |
7 X 15/0.07 |
1.2 |
45.2 |
48.6 |
3.81 |
|
0.50 |
0.512 |
133 |
7 X 19/0.07 |
1.3 |
35.7 |
38.3 |
4.82 |
|
0.63 |
0.620 |
161 |
7 X 23/0.07 |
1.5 |
29.5 |
31.6 |
5.84 |
|
0.80 |
0.808 |
210 |
7 X 30/0.07 |
1.6 |
22.6 |
24.3 |
7.61 |
|
1.00 |
0.990 |
1 26 |
7 X 18/0.10 |
1.8 |
18.5 |
19.3 |
9.33 |
|
1.25 |
1.264 |
161 |
7x23/0.10 |
2.0 |
14.5 |
15.1 |
11.9 |
|
1.6 |
1.594 |
203 |
7x29/0.10 |
2.2 |
11.5 |
12.0 |
15.0 |
|
2.0 |
1.979 |
252 |
7x36/0.10 |
2.4 |
9.23 |
9.65 |
18.6 |
|
2.5 |
2.47 |
315 |
7x45/0.10 |
2.7 |
7.39 |
7.72 |
23.3 |
|
3.15 |
3.134 |
399 |
7x57/0.10 |
3.0 |
5.83 |
6.09 |
29.5 |
|
4.0 |
3.958 |
504 |
7x72/0.10 |
3.3 |
4.62 |
4.83 |
37.3 |
|
5.0 |
4.948 |
630 |
7x90/0.10 |
3.8 |
3.96 |
3.73 |
46.6 |
|
6.3 |
6.243 |
552 |
12x46/0.12 |
4.3 |
2.94 |
3.07 |
59.1 |
|
8 |
7.872 |
696 |
12X 58/0.12 |
4.8 |
2.33 |
2.44 |
74.5 |
|
10 |
10.04 |
888 |
12 X 74/0.12 |
5.3 |
1 .83 |
1.91 |
95.1 |
|
12.5 |
12.46 |
1102 |
19x 58/0.12 |
5.9 |
1 .48 |
1.55 |
118.5 |
|
16 |
15.90 |
1406 |
19x74/0.12 |
6.7 |
1 .16 |
1.21 |
151.2 |
Q1. Are you the manufacturer?
A1: Yes. We have specialized in manufacturing high quality cable assembly and wire harness for more than 24 years.
Q2. Can you supply OEM & ODM service? Yes.
A2: We have customized all kinds of flexible copper connector, we are very experienced in customizing & producing any cables you need.
● Our Copper Braided Wires are designed to provide optimal performance in demanding applications, including aerospace, automotive, and industrial.
● We have reliable quality, the latest design, timely delivery, and can process with drawings to provide users with comprehensive services.
● Our products are well-known for their durability, reliability, and resistance to wear and tear.
● Our company has a long history of close cooperation with overseas countries, we implement local control management and share resources to ensure that the company has sufficient supply of goods to meet market demand.
● Our prices are highly competitive, without compromising on the quality of our Copper Braided Wires.
● In the same industry, our Copper Braids Soft Connection in Electrical Appliance is ahead of our competitors with the same quality and lower price.
● As Copper Braided Wire specialists, we are constantly innovating to offer our customers the latest and most advanced materials and technologies.
● Our main products are Copper Braids Soft Connection in Electrical Appliance, which are very popular all over the world and are exported to Europe, America and Africa.
● We value our customers and strive to build long-lasting relationships based on trust, transparency, and mutual respect.
● While based in the Chinese market, the company actively explores overseas markets and develops business cooperation with customers in multiple industries.
