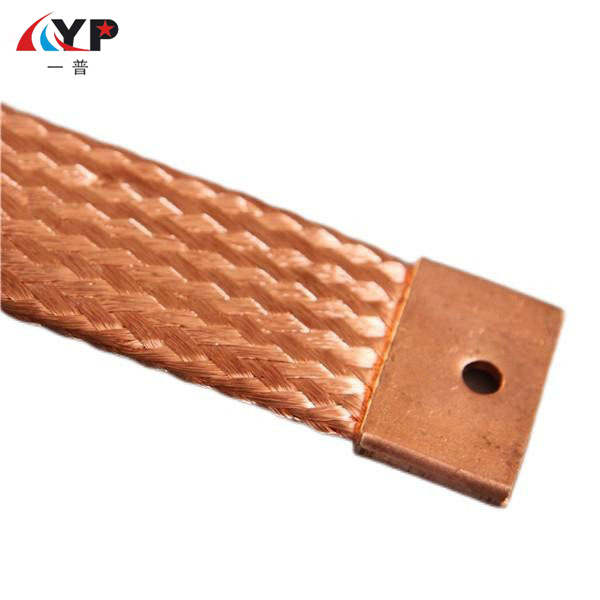

Copper Braided Connectors with Ferrules are an essential component for many electrical systems. They provide a stable and reliable connection that ensures the smooth functioning of electrical devices. With years of experience in the manufacturing industry, we are proud to offer our product to merchants worldwide. Our Copper Braided Connectors with Ferrules are made using high-quality components, giving them excellent conductivity and durability.
In this product introduction, we will discuss the key aspects of our Copper Braided Connectors with Ferrules, including their construction, features, and benefits. We will also talk about the various applications of these connectors, making it easier for merchants to determine how these products can benefit their business.
Our Copper Braided Connectors with Ferrules are made using high-quality components such as copper strands and braids. The braided construction of our connectors provides excellent flexibility, which makes it easier to bend and shape them to fit various application requirements. Additionally, the copper strands provide superior electrical conductivity, ensuring a stable and reliable connection.
Our Copper Braided Connectors with Ferrules are designed with a range of features that make them a great option for many applications. Some features of our connectors include:
1. High-quality copper strands and braids
2. Excellent flexibility
3. Superior electrical conductivity
4. Durable construction
5. Available in different sizes
6. Easy to install
The Copper Braided Connectors with Ferrules offer several benefits for merchants looking for a reliable and durable electrical connection system. Some of the most significant benefits of our connectors include:
1. High conductivity: With the use of copper strands, our connectors offer excellent conductivity, ensuring a stable and reliable connection.
2. Durability: The braided construction of our connectors provides excellent durability and flexibility, making them an excellent option for a range of applications.
3. Easy to install: Our connectors are easy to install, making them a great option for merchants looking for a hassle-free installation.
Our Copper Braided Connectors with Ferrules can be used in a variety of applications, making them a versatile option for merchants. Some of the most common applications of our connectors include:
1. Electrical equipment: Our connectors can be used in electrical equipment such as transformers, motors, and generators.
2. Grounding applications: Our connectors are commonly used for grounding applications, ensuring a safe and reliable electrical system.
3. Automotive industry: Our connectors are also useful in the automotive industry, where they can be used in electrical systems, batteries, and more.
In conclusion, the Copper Braided Connectors with Ferrules are a reliable and durable option for merchants looking for a stable electrical connection for various applications. Our connectors are made using high-quality components, ensuring excellent conductivity and durability. With easy installation and flexible construction, they are a versatile option for many businesses. We are confident that our Copper Braided Connectors with Ferrules will meet the needs of merchants worldwide and lead to long-term business success.
|
NAME |
Tinned copper braided connectors |
|
MATERIAL |
copper |
|
SURFACE TREATMENT |
Bare copper or tinned plated |
|
SIZE |
As customer’s request |
|
COLOR |
Red or white |
|
DRAWING |
customized design is acceptable. |
|
ADVANTAGES |
Professional staff and designer with many years experience |
|
FEATURE |
1) Pure copper wire99.9% |
|
2)Annealing to make the wire more flexible |
|
|
3)Class A process |
TS,TSX
|
Section mm² |
Structure |
Size mm |
Calculated weight |
||
|
Standard |
Calculated |
No.of strands x No.of wire x layers/ single wire diameter (mm) |
Width |
Thickness for reference (mm) |
kg/km |
|
Nominal Cross Section (mm' ) |
Construction No.of strands x No.of wire x layers/single wire diameter(mm) |
Width |
Thickness (mm) |
Calculated Weight (kg/km) |
Nominal Cross Section (mm') |
|
2 |
2.12 |
24x5x1/0.15 |
5.0 |
1.0 |
21 |
|
2.5 |
2.54 |
25x6x 1/0.15 |
6.0 |
1.0 |
25.4 |
|
3.5 |
3.18 |
36x6x 1/0.15 |
8.0 |
1.5 |
32 |
|
4 |
4.24 |
24x10x1/0 15 |
7.0 |
1.5 |
43 |
|
6 |
6.36 |
36 X 10 X 1/0 15 |
1 1.0 |
1.5 |
64 |
|
8 |
8.45 |
48 X 10 X 1/0 15 |
13.0 |
1.2 |
85 |
|
10 |
10.60 |
40 X 15 X 1/0 15 |
1 5.0 |
2.0 |
106 |
|
|
10.18 |
48 X 12 X 1/0 15 |
16.0 |
1.5 |
102 |
|
12 |
1 2.72 |
48 X 15 X 1/0 15 |
18.0 |
1.8 |
1 28 |
|
16 |
16.96 |
48x20x 1/015 |
22.0 |
2.0 |
1 70 |
|
20 |
21.20 |
48x25x 1/015 |
25.0 |
2.0 |
212 |
|
25 |
25.45 |
48x30x 1/015 |
28.0 |
3.0 |
254 |
|
|
25.45 |
48x15x2/0 15 |
20.0 |
3.5 |
254 |
|
35 |
33.93 |
64x30x 1/015 |
40.0 |
2.2 |
340 |
|
|
33.93 |
48 X 20 X 2/0 1 5 |
26.0 |
3.2 |
340 |
|
50 |
50.87 |
65x45x 1/0.15 |
50.0 |
3.0 |
510 |
|
|
50.87 |
48 X 30 X 2/0.1 5 |
30.0 |
3.2 |
510 |
|
|
50.89 |
48 X 20 X 3/0.15 |
28.0 |
4.8 |
510 |
|
75 |
76.34 |
96x45x 1/0.15 |
32.0 |
3.5 |
765 |
|
|
76.34 |
48 X 30 X 3/0.15 |
36.0 |
5.0 |
765 |
|
95 |
95.00 |
48 X 28 X 4/0.15 |
35.0 |
6.0 |
950 |
|
100 |
100.09 |
96x59x 1/0.15 |
80.0 |
4.0 |
1000 |
|
120 |
127.23 |
48 X 30 X 5/0.15 |
42.0 |
7.0 |
1272 |
TSR
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance Ω/km ≤ |
Calculated weight Kg/km |
||
|
The number of total single wires |
Number of strands x No.of wires Nominal diameter of a single wire(mm) |
TS |
TSX |
||||
|
0.063 |
0.0628 |
32 |
32/0.05 |
0.5 |
288 |
0.586 |
|
|
0.08 |
0.0785 |
40 |
40/0.05 |
0.55 |
231 |
0.733 |
|
|
0.10 |
0.0982 |
50 |
50/0.05 |
0.6 |
184 |
0.917 |
|
|
0.125 |
0.124 |
63 |
63/0 05 |
0.65 |
146 |
1.16 |
|
|
0.16 |
0.165 |
84 |
7X12/0.05 |
0.7 |
111 |
1.55 |
|
|
0.20 |
0.206 |
105 |
7 X 15/0.05 |
0.8 |
88.7 |
1.92 |
|
|
0.25 |
0.247 |
126 |
7 X 18/0.05 |
1.0 |
74.0 |
2.33 |
|
|
0.315 |
0.316 |
160 |
7X 23/0.05 |
1.1 |
57.8 |
2.95 |
|
|
0.40 |
0.399 |
203 |
7 X 29/0.05 |
1.2 |
45.8 |
3.76 |
|
|
0.50 |
0.495 |
252 |
12 X 21/0.05 |
1.3 |
37.0 |
4.69 |
|
|
0.63 |
0.636 |
324 |
12 X 27/0.05 |
1.5 |
28.9 |
6.02 |
|
|
0.80 |
0.801 |
408 |
12 X 34/0.05 |
1.6 |
22.9 |
7.58 |
|
|
1.00 |
0.990 |
504 |
12 X 42/0.05 |
1.8 |
18.6 |
9.37 |
|
|
1.25 |
1.268 |
646 |
19 X 34/0.05 |
2.0 |
14.5 |
12.1 |
|
|
1.6 |
1.567 |
798 |
19 X 42/0.05 |
2.2 |
11.8 |
14.9 |
|
|
2.0 |
2.015 |
1026 |
19 X 54/0.05 |
2.4 |
9.16 |
19.2 |
|
|
2.5 |
2.500 |
1273 |
19x67/0.05 |
2.7 |
7.38 |
23.8 |
|
|
3.15 |
3.144 |
817 |
19 X 43/0.07 |
3.0 |
5.87 |
29.9 |
|
|
4.0 |
4.022 |
1045 |
19 X 55/0.07 |
3.3 |
4.59 |
38.3 |
|
|
5.0 |
1.927 |
1292 |
19 X 68/0.07 |
3.8 |
3.71 |
47.3 |
|
|
6.3 |
6.288 |
1634 |
19 X 86/0.07 |
4.3 |
2.93 |
59.8 |
|
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.
Copper belt soft connection can be used for transformer installation, high and low voltage switchboard, vacuum appliances, closed busbar, generator and busbar, rectifier equipment, connection between rectifier cabinet and isolation switch and connection between busbar. It can improve the conductivity, adjust the installation error of equipment, and play the role of (shock absorption) work compensation, convenient test and equipment maintenance, etc.
Q1. What is your terms of packing?
A: Generally, we pack our goods in reel and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
We have professional production line.
In order to improve the quality of products, the company introduced domestic advanced production equipment and first-class testing equipment. The equipment is mainly automatic and semi-automatic, and the systematization and standardization of the product testing link are realized.
For the company to produce excellent performance of first-class products laid the foundation.
At present, the annual production capacity is over 1500 tons.
The annual output value can reach 60 million yuan.
