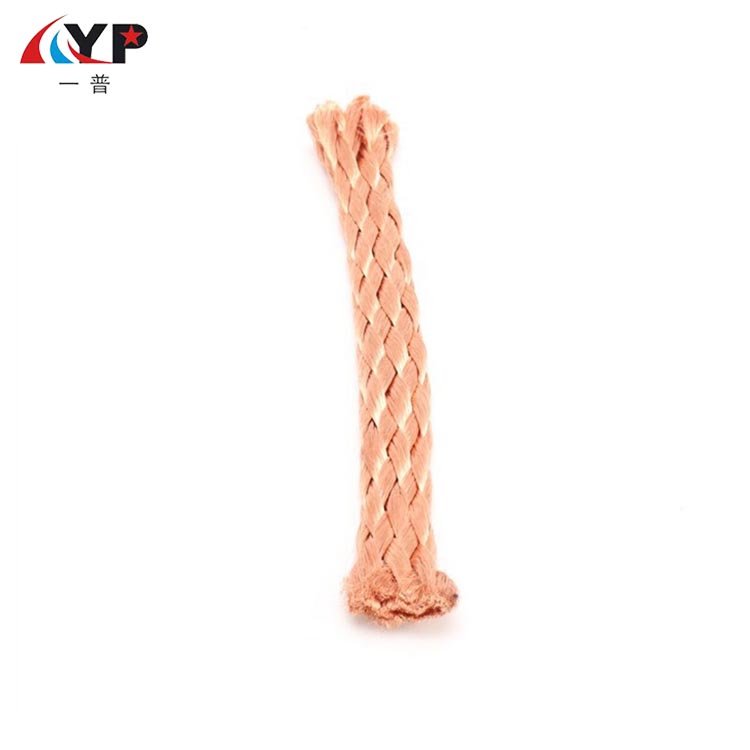

Hello and thank you for taking the time to read about our bare copper braided wires. As a manufacturer located in China, we have been producing high-quality wires for many years and have gained a reputation as one of the leading providers in the industry. Our range of bare copper braided wires is just one example of our commitment to creating reliable and durable products that meet the needs of merchants around the world.
In this guide, I'll provide a comprehensive overview of our bare copper braided wires and highlight some of the key features and benefits that make them an ideal choice for a wide range of applications. Whether you're looking to purchase wires for your business or are interested in reselling our products, I'm confident that you'll find plenty of reasons to choose our bare copper braided wires.
One of the key features of our bare copper braided wires is the high level of conductivity they provide. As you probably know, copper is one of the world's most conductive materials, which makes it an ideal choice for a range of electrical applications. Our wires are made using high-quality bare copper that provides excellent conductivity, ensuring that your devices will work efficiently and without any signal loss.
Another important feature of our bare copper braided wires is that they are highly flexible. This makes them easy to install in tight spaces and ensures that they will remain in place even if the device is moved, jostled or subjected to other types of mechanical stresses. With their flexibility, our wires provide great maneuverability and can be installed quickly and effortlessly.
Our wires are also incredibly durable and long-lasting, even under harsh environmental conditions. We manufacture all our braided copper wires using high-quality materials and with great attention to detail. We regard your safety, and that's why we ensure that all our products meet or exceed the highest safety standards set by relevant regulatory bodies. Our wires will not only outlive most competing products, but they will also perform better in the long run.
So why should you choose our bare copper braided wires? Here are just a few of the many benefits that our products offer:
1. High-Quality Materials: Our wires are made using high-quality copper that provides excellent conductivity, ensuring that your devices will work efficiently and without any signal loss. Further, they are durable and promise less to no signal drop-outs and failures.
2. Flexibility: Our wires are highly flexible, making them easy to install even in tight spaces. This saves time and money that would have been used to install more rigid wires.
3. Durability: Our bare copper braided wires are highly durable and built to last even under the harshest environmental conditions. This assures our customers of fewer replacements and maintenance services, which eventually means more savings.
4. Cost-Effective: Our wires are not only highly durable and efficient, but they are also incredibly cost-effective. With our competitive pricing, you'll be able to purchase high-quality wires without breaking the bank.
Our bare copper braided wires can be used in a wide range of applications and industries, including:
1. Electrical Wiring: Our wires can be used in electrical wiring applications such as in residential, commercial, and industrial buildings. They are ideal for power transmission and distribution systems, machinery, and equipment wiring.
2. Automotive Industry: Our wires are highly suited for the automotive industry and can be used in wiring harnesses, engine sensors, and other automotive applications.
3. Aerospace Industry: The functionality and durability of our bare copper braided wires make them useful in the aerospace industry, where they can be used in wiring and harness systems.
4. Communication Industry: Our wires are also ideally suited for use in communication applications such as in local area network (LAN) wiring, telephone networks, and other communication systems.
Our bare copper braided wires are the perfect choice for any merchant looking for high-quality, cost-effective wires. With their excellent conductivity, durability, and flexibility, our wires are perfect for a wide range of applications ranging from electrical wiring, automotive, aerospace, and communication industries. We pride ourselves on our attention to detail and the quality of our products, and we're confident that you'll find our bare copper braided wires to be of the highest standard.
We look forward to the opportunity to serve you and provide you with the best possible products and services. Please feel free to contact us if you have any questions or are interested in placing an order. Thank you, and we wish you all the best in your endeavors.
Material: annealed Cu-T1, copper content ≥ 99.95%
Finish: bare, tin plating, nickel plating, silver plating
Cross Sectional Area: 0.2mm² - 300mm²
Packing Modes: in rolls, on spools or wooden drums
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.
ZHEJIANG YIPU METAL MANUFACTURING CO., LTD. has own factory,which can produce copper braided wires and copper stranded wires to the maximum extent. We are happy to have you visit us any time! This is the only way we can have complete control over production times and process throughput.
Our company adopts the most advanced ultrasonic welding technology and weaving technology.
The weaving density is fine, the surface is smooth, no burr, no cut in the middle, and the extrusion width, thickness, resistivity up to international standards. According to customer drawings or requirements to produce various types of copper braided wire, tinned copper braided wire, red copper braided wire.
Copper braided wire is used in a wide range, from small aspects which can be used in electronic products or household appliances and from big aspects which can be used in overhead cables, load-bearing machine disconnection, and large mechanical equipment.
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
The number of total single wires |
Single wire diameter |
Wire Number Per Strand |
Wire Structure Strands |
Layers Number |
DC resistance Ω/km ≤ |
Calculated weight Kg/km |
|
1.6 |
1.60 |
816 |
0.05 |
102 |
1 |
8 |
11.30 |
14.24 |
|
2 |
2.01 |
1024 |
0.05 |
128 |
1 |
8 |
9.00 |
17.87 |
|
4 |
4.02 |
2048 |
0.05 |
128 |
2 |
8 |
4.50 |
35.74 |
|
5 |
5.04 |
2568 |
0.05 |
107 |
3 |
8 |
3.59 |
44.81 |
|
8 |
8.04 |
4096 |
0.05 |
128 |
4 |
8 |
2.25 |
71.48 |
|
12 |
12.06 |
6144 |
0.05 |
128 |
6 |
8 |
1.50 |
107.21 |
|
16 |
16.08 |
8192 |
0.05 |
128 |
8 |
8 |
1.13 |
142.95 |
|
20 |
20.10 |
10240 |
0.05 |
128 |
10 |
8 |
0.90 |
178.69 |
|
22 |
22.09 |
11256 |
0.05 |
134 |
7 |
12 |
0.82 |
196.42 |
|
25 |
25.06 |
12768 |
0.05 |
133 |
12 |
8 |
0.72 |
222.80 |
|
28 |
28.02 |
14280 |
0.05 |
119 |
10 |
12 |
0.65 |
249.19 |
|
30 |
30.14 |
15360 |
0.05 |
128 |
10 |
12 |
0.60 |
268.03 |
|
36 |
36.17 |
18432 |
0.05 |
128 |
12 |
12 |
0.50 |
321.64 |
|
50 |
50.11 |
25536 |
0.05 |
133 |
16 |
12 |
0.36 |
445.60 |
|
12 |
12.00 |
3120 |
0.07 |
130 |
3 |
8 |
1.51 |
106.71 |
|
16 |
16.00 |
4160 |
0.07 |
130 |
4 |
8 |
1.13 |
142.28 |
|
18 |
18.00 |
4680 |
0.07 |
117 |
5 |
8 |
1.01 |
160.07 |
|
20 |
20.00 |
5200 |
0.07 |
130 |
5 |
8 |
0.90 |
177.85 |
|
28 |
28.00 |
7280 |
0.07 |
130 |
7 |
8 |
0.65 |
248.99 |
|
4 |
4.02 |
3200 |
0.04 |
200 |
2 |
8 |
4.50 |
35.74 |
|
5 |
5.00 |
3984 |
0.04 |
166 |
3 |
8 |
3.62 |
44.49 |
|
20 |
20.10 |
16000 |
0.04 |
200 |
10 |
8 |
0.90 |
178.69 |
|
25 |
25.02 |
19920 |
0.04 |
166 |
10 |
12 |
0.72 |
222.47 |
|
30 |
30.02 |
23904 |
0.04 |
166 |
12 |
12 |
0.60 |
266.96 |
|
36 |
36.17 |
28800 |
0.04 |
200 |
12 |
12 |
0.50 |
321.64 |
|
40 |
40.03 |
31872 |
0.04 |
166 |
16 |
12 |
0.45 |
355.95 |
Q1. What is your terms of packing?
A: Generally, we pack our goods in reel and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Shipment:
The goods ship by sea,air and express.If you want ship by other way,please do not hesitate to contact us.
Packing:
7KG/10KG/20KG/30KG/50KG…… in plastic or wooden roll, carton or wooden cases or as per requirements.
● Our flexible copper braided wires are designed to meet the highest safety standards, ensuring they are safe to use in any environment.
● With the change of marketing environment, our understanding of customer value gradually deepens, and our marketing core changes accordingly.
● We use high-quality raw materials to ensure the best possible performance of our products.
● Our company is a supplier integrating R&D, production, and service. We continue to carry out product innovation to ensure that customers can have diversified choices. Good supply capacity, stable product quality, and strict quality inspection process have won us a good reputation in the industry and the market.
● We use the latest technology and manufacturing techniques to ensure that our products are of the highest quality.
● With advanced equipment and superb craftsmanship, we focus on the development and production of Bare Copper Braided Wire, and strive to meet the different needs of users through continuous practice and innovation.
● Our team of experts can provide technical support and guidance to help our customers choose the right product for their needs.
● Professional expertise is the company's purpose. Focusing on talents, focusing on innovation, focusing on quality and focusing on service are the company's consistent pursuit and commitment to you. We firmly believe that focusing on creating quality ● ● ● products will help us in Bare Copper Braided WireClimb the peak in the career field!
● We offer flexible delivery options to ensure our customers receive their products when and where they need them.
● Our products have won the trust and praise of the majority of users for its high quality, low price and excellent service.
