Tinned Copper Braided Connectors are high-quality electrical connectors that have become increasingly popular in recent years. As the name suggests, these connectors are made from tinned copper braids, which give them unique advantages over other connector types. At their core, these connectors are designed to ensure reliable, long-lasting electrical connections in a wide range of applications, from industrial machinery to audio equipment.
Tinned Copper Braided Connectors boast several key benefits, including exceptional electrical conductivity, excellent thermal conductivity, and high tensile strength. Unlike regular copper connectors, tinned copper braids resist corrosion and are almost maintenance-free. This makes them an ideal solution for use in harsh environments or applications requiring high levels of mechanical or thermal stresses.
One of the key benefits of tinned copper braids is their superior electrical conductivity. Copper is one of the best electrical conductors available and, when treated with tin, the braid offers up to a 20% increase in conductivity over standard copper connectors. This makes it an ideal solution for applications where high current-carrying capacity is critical. Therefore, tinned copper braids are widely used in electric vehicles, renewable energy applications, power distribution systems, and other critical areas.
Tinned Copper Braided Connectors also boast exceptional thermal conductivity, which makes them ideally suited for high-heat applications. The braided design allows the connector to efficiently dissipate heat, which prevents the terminals from overheating and causing damage. Hence, they are highly recommended for use in electrical equipment or appliances that generate significant heat in operation, such as generators or transformers.
Another significant advantage of tinned copper braids is their high tensile strength. The braided construction strengthens the connectors and allows them to withstand extreme loads and resist breaking. This makes them highly suitable for use in areas where vibration or movement can cause connectors to loosen or fail. Additionally, they're easy to install, and no special tools are needed for installation or maintenance.
In conclusion, if you are searching for an electrical connector that can provide optimal electrical conductivity, superior heat dissipation, high tensile strength, and is low maintenance, then Tinned Copper Braided Connectors are the perfect solution for your needs. Due to their high-quality features, these connectors are popularly used in the automobile industry, renewable energy projects, electronic devices, and many other applications.
At our manufacturing unit in China, we produce tinned copper braids of various lengths, sizes, and thicknesses to cater to the clients' specific requirements. We use high-quality raw materials sourced from reliable suppliers, coupled with our production expertise, which makes our products meet global standards for quality and reliability.
Contact us today to learn more about our Tinned Copper Braided Connectors or to request a quote. We are committed to providing our clients with high-quality products that meet their requirements to ensure maximum satisfaction.
NAME |
Tinned copper braided connectors |
MATERIAL |
copper |
SURFACE TREATMENT |
Bare copper or tinned plated |
SIZE |
As customer’s request |
COLOR |
Red or white |
DRAWING |
customized design is acceptable. |
ADVANTAGES |
Professional staff and designer with many years experience |
FEATURE |
1) Pure copper wire99.9% |
2)Annealing to make the wire more flexible |
|
3)Class A process |
TS,TSX
Section mm² |
Structure |
Size mm |
Calculated weight |
||
Standard |
Calculated |
No.of strands x No.of wire x layers/ single wire diameter(mm) |
Width |
Thickness for reference (mm) |
kg/km |
Nominal Cross Section (mm') |
Construction |
Width |
Thickness (mm) |
Calculated Weight (kg/km) |
Nominal Cross Section (mm') |
2 |
2.12 |
24x5x1/0.15 |
5.0 |
1.0 |
21 |
2.5 |
2.54 |
25x6x 1/0.15 |
6.0 |
1.0 |
25.4 |
3.5 |
3.18 |
36x6x 1/0.15 |
8.0 |
1.5 |
32 |
4 |
4.24 |
24x10x1/0 15 |
7.0 |
1.5 |
43 |
6 |
6.36 |
36 X 10 X 1/0 15 |
1 1.0 |
1.5 |
64 |
8 |
8.45 |
48 X 10 X 1/0 15 |
13.0 |
1.2 |
85 |
10 |
10.60 |
40 X 15 X 1/0 15 |
1 5.0 |
2.0 |
106 |
|
10.18 |
48 X 12 X 1/0 15 |
16.0 |
1.5 |
102 |
12 |
1 2.72 |
48 X 15 X 1/0 15 |
18.0 |
1.8 |
1 28 |
16 |
16.96 |
48x20x 1/015 |
22.0 |
2.0 |
1 70 |
20 |
21.20 |
48x25x 1/015 |
25.0 |
2.0 |
212 |
25 |
25.45 |
48x30x 1/015 |
28.0 |
3.0 |
254 |
|
25.45 |
48x15x2/0 15 |
20.0 |
3.5 |
254 |
35 |
33.93 |
64x30x 1/015 |
40.0 |
2.2 |
340 |
|
33.93 |
48 X 20 X 2/0 1 5 |
26.0 |
3.2 |
340 |
50 |
50.87 |
65x45x 1/0.15 |
50.0 |
3.0 |
510 |
|
50.87 |
48 X 30 X 2/0.1 5 |
30.0 |
3.2 |
510 |
|
50.89 |
48 X 20 X 3/0.15 |
28.0 |
4.8 |
510 |
75 |
76.34 |
96x45x 1/0.15 |
32.0 |
3.5 |
765 |
|
76.34 |
48 X 30 X 3/0.15 |
36.0 |
5.0 |
765 |
95 |
95.00 |
48 X 28 X 4/0.15 |
35.0 |
6.0 |
950 |
100 |
100.09 |
96x59x 1/0.15 |
80.0 |
4.0 |
1000 |
120 |
127.23 |
48 X 30 X 5/0.15 |
42.0 |
7.0 |
1272 |
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance Ω/km ≤ |
Calculated weight Kg/km |
||
The number of total single wires |
Number of strands x No.of wires Nominal diameter of a single wire(mm) |
TS |
TSX |
||||
0.063 |
0.0628 |
32 |
32/0.05 |
0.5 |
288 |
0.586 |
|
0.08 |
0.0785 |
40 |
40/0.05 |
0.55 |
231 |
0.733 |
|
0.10 |
0.0982 |
50 |
50/0.05 |
0.6 |
184 |
0.917 |
|
0.125 |
0.124 |
63 |
63/0 05 |
0.65 |
146 |
1.16 |
|
0.16 |
0.165 |
84 |
7X12/0.05 |
0.7 |
111 |
1.55 |
|
0.20 |
0.206 |
105 |
7 X 15/0.05 |
0.8 |
88.7 |
1.92 |
|
0.25 |
0.247 |
126 |
7 X 18/0.05 |
1.0 |
74.0 |
2.33 |
|
0.315 |
0.316 |
160 |
7X 23/0.05 |
1.1 |
57.8 |
2.95 |
|
0.40 |
0.399 |
203 |
7 X 29/0.05 |
1.2 |
45.8 |
3.76 |
|
0.50 |
0.495 |
252 |
12 X 21/0.05 |
1.3 |
37.0 |
4.69 |
|
0.63 |
0.636 |
324 |
12 X 27/0.05 |
1.5 |
28.9 |
6.02 |
|
0.80 |
0.801 |
408 |
12 X 34/0.05 |
1.6 |
22.9 |
7.58 |
|
1.00 |
0.990 |
504 |
12 X 42/0.05 |
1.8 |
18.6 |
9.37 |
|
1.25 |
1.268 |
646 |
19 X 34/0.05 |
2.0 |
14.5 |
12.1 |
|
1.6 |
1.567 |
798 |
19 X 42/0.05 |
2.2 |
11.8 |
14.9 |
|
2.0 |
2.015 |
1026 |
19 X 54/0.05 |
2.4 |
9.16 |
19.2 |
|
2.5 |
2.500 |
1273 |
19x67/0.05 |
2.7 |
7.38 |
23.8 |
|
3.15 |
3.144 |
817 |
19 X 43/0.07 |
3.0 |
5.87 |
29.9 |
|
4.0 |
4.022 |
1045 |
19 X 55/0.07 |
3.3 |
4.59 |
38.3 |
|
5.0 |
1.927 |
1292 |
19 X 68/0.07 |
3.8 |
3.71 |
47.3 |
|
6.3 |
6.288 |
1634 |
19 X 86/0.07 |
4.3 |
2.93 |
59.8 |
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.

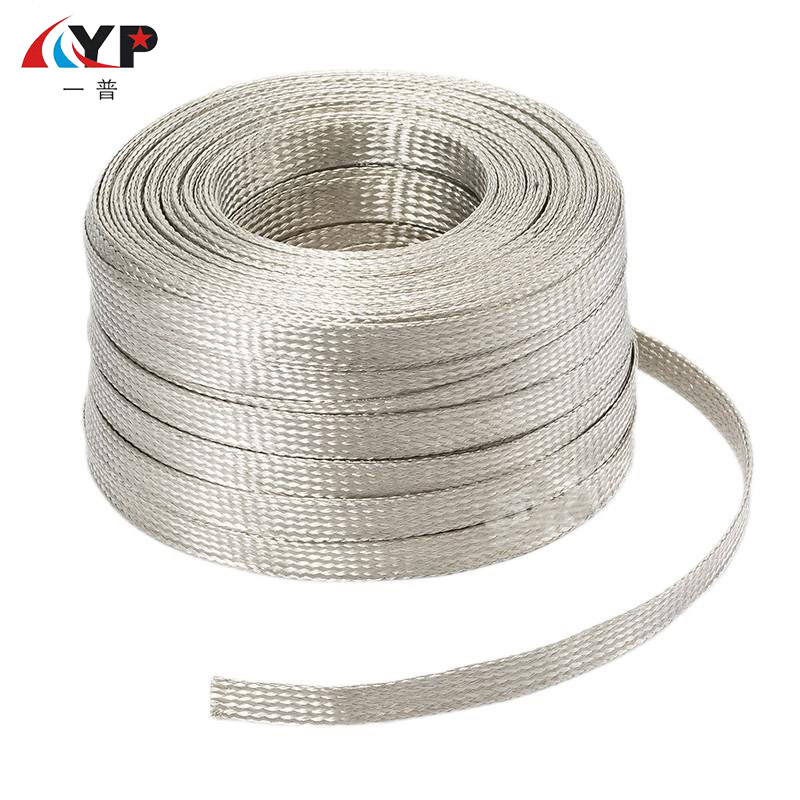

Copper braided wire soft connection, also called conductive belt, copper wire soft connection, tinned copper braided wire soft connection, copper braided belt soft connection, etc. The T1 oxygen-free copper rod is made into wire by multi-channel extruding process. The surface is bare copper or tin or silver plated, and then braided into wire. The two ends are pressed tin-plated copper tube or pure copper tube.
The Flat braided ground wire is suitable for the flexible connected wires of electrical equipment, electrical switch, electrical furnace, battery, etc.
Also can be as shielding sleeve for wire harness etc.
We have professional production line.
In order to improve the quality of products, the company introduced domestic advanced production equipment and first-class testing equipment. The equipment is mainly automatic and semi-automatic, and the systematization and standardization of the product testing link are realized.
For the company to produce excellent performance of first-class products laid the foundation.
At present, the annual production capacity is over 1500 tons.
The annual output value can reach 60 million yuan.
● Our Tinned Copper Braid products are reliable and durable, ensuring long-lasting performance.
● In recent years, our company based on the domestic basis, and actively explore the international market, Tinned Copper Braided Connectors are exported to many overseas countries.
● We are committed to providing our customers with the best possible products and services.
● Our creativity and core competence have laid the foundation for our sustainable development.
● Our Tinned Copper Braid products are tested and certified to meet industry standards.
● We will continue to learn and innovate to become a company that can take responsibility and contribute value to relevant stakeholders.
● With our Tinned Copper Braid products, you can rest assured knowing you are getting the best performance possible.
● Our company abides by people-oriented, quality as gold and adheres to the business policy of building great achievements together.
● We take pride in our excellent customer service and quick turnaround times.
● We introduce a scientific and systematic management system to regulate the daily management and operation process of the company.
