At [Company Name], we take pride in producing the best quality copper stranded connectors with welded ends. Our product is reliable and durable, offering merchants excellent value for their money. Our copper connectors have passed the strictest international quality standards to ensure that our customers benefit from an exceptional product.
Our copper connectors are made from 99.99% pure copper, and we have ensured that they are environment-friendly. We use only the highest quality copper, which not only improves conductivity but also ensures that our connectors remain durable and reliable. The copper connectors are plated with nickel, which gives them corrosion-resistant properties, making them perfect for use in harsh environments.
Our copper connectors have welded ends to improve electrical conductivity and ensure excellent performance. We use a unique welding technique to connect the stranded copper, which ensures that our customer is getting a superior quality product. Our connectors are available in various sizes, so customers can pick what best suits their project.
Our copper connectors offer several benefits that make them an excellent choice for merchants. These benefits include:
Durability: Our connectors are made from high-quality material and have welded ends, making them durable and long-lasting.
Excellent conductivity: The use of 99.99% pure copper and controlled welding techniques ensure that our connectors have excellent electrical conductivity.
Corrosion-resistant: Our connectors are plated with nickel, which adds a layer of protection against corrosion, making them ideal for use in harsh conditions.
Easy to use: Our connectors are easy to use and install, making them perfect for customers with varying levels of expertise.
Our copper connectors are versatile and can be used in a wide range of industries. Some of the most common applications for our connectors include:
Solar Power systems: Our connectors are perfect for use in the Solar power industry. They are corrosion-resistant, durable, and high-performing, ensuring excellent results.
Electronics: Our connectors can be used in various electronic applications, including in the communication industry.
Automotive: In the automotive industry, our connectors can be used to improve the electrical conductivity of car parts, promoting reliability and performance.
Construction: Our connectors are perfect for use in electrical construction projects, making them ideal for electricians and contractors.
At [Company Name], we produce high-quality copper connectors with welded ends that meet strict international quality standards. Our product is durable, reliable, and can be used in a wide range of industries. Our connectors are easy to use, and customers can choose from various sizes based on their needs. We pride ourselves on our excellent customer service, and our team of experts is always ready to answer any questions that customers may have. Contact us today to place your order and experience the benefits of using our copper connectors.
|
NAME |

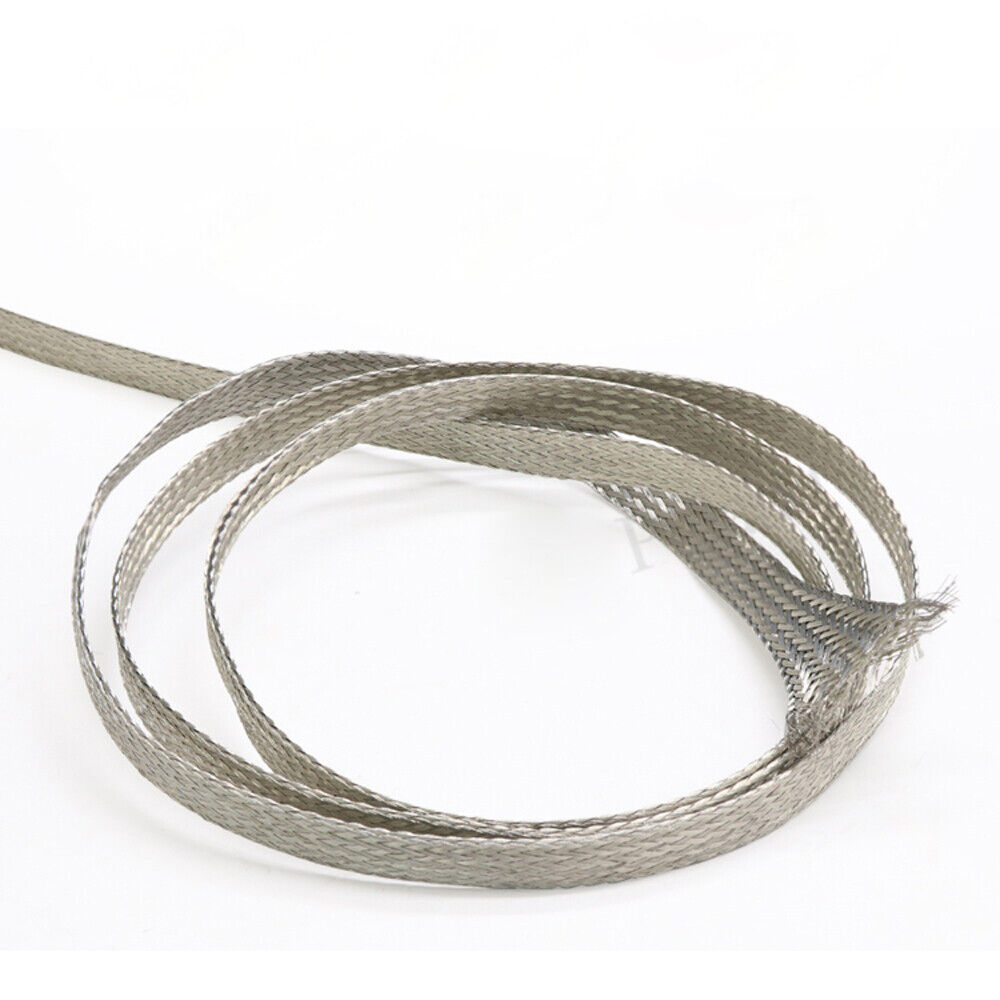

Flat tinned copper braid |
|
MATERIAL |
copper |
|
SURFACE TREATMENT |
Bare copper or tinned plated |
|
SIZE |
As customer’s request |
|
COLOR |
Red or white |
|
DRAWING |
customized design is acceptable. |
|
ADVANTAGES |
Professional staff and designer with many years experience |
|
FEATURE |
1) Pure copper wire99.9% |
|
2)Annealing to make the wire more flexible |
|
|
3)Class A process |
Price: Our price fluctuates with raw materials and exchange rate. Please leave your contact information and we will give you a new quotation as soon as possible.
1.The flexible copper stranded wire is made of high quality round copper wire or tinned soft round copper wire. During the processing process, the product is soft, neat and beautiful.
2.The current resistance of the copper stranded cable (20℃) is not bigger than 0.0182 ω mm2/m. The current resistivity of tinned copper stranded wire (20℃) is not bigger than 0.0193 ω mm2/m.
3. The technical standard of the product conforms to GB12970.2-91.
TS,TSX
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance Ω/km |
Calculated weight Kg/km |
||
|
The number of total single wires |
No. of strands x No.of wires Nominal diameter of a single wire(mm） |
TS |
TSX |
||||
|
0.25 |
0.242 |
63 |
7 X 9/0.07 |
1.0 |
75.5 |
81.1 |
2.28 |
|
0.315 |
0.323 |
84 |
7 X 12/0.07 |
1.1 |
56.6 |
60.7 |
3.04 |
|
0.40 |
0.404 |
105 |
7 X 15/0.07 |
1.2 |
45.2 |
48.6 |
3.81 |
|
0.50 |
0.512 |
133 |
7 X 19/0.07 |
1.3 |
35.7 |
38.3 |
4.82 |
|
0.63 |
0.620 |
161 |
7 X 23/0.07 |
1.5 |
29.5 |
31.6 |
5.84 |
|
0.80 |
0.808 |
210 |
7 X 30/0.07 |
1.6 |
22.6 |
24.3 |
7.61 |
|
1.00 |
0.990 |
1 26 |
7 X 18/0.10 |
1.8 |
18.5 |
19.3 |
9.33 |
|
1.25 |
1.264 |
161 |
7x23/0.10 |
2.0 |
14.5 |
15.1 |
11.9 |
|
1.6 |
1.594 |
203 |
7x29/0.10 |
2.2 |
11.5 |
12.0 |
15.0 |
|
2.0 |
1.979 |
252 |
7x36/0.10 |
2.4 |
9.23 |
9.65 |
18.6 |
|
2.5 |
2.47 |
315 |
7x45/0.10 |
2.7 |
7.39 |
7.72 |
23.3 |
|
3.15 |
3.134 |
399 |
7x57/0.10 |
3.0 |
5.83 |
6.09 |
29.5 |
|
4.0 |
3.958 |
504 |
7x72/0.10 |
3.3 |
4.62 |
4.83 |
37.3 |
|
5.0 |
4.948 |
630 |
7x90/0.10 |
3.8 |
3.96 |
3.73 |
46.6 |
|
6.3 |
6.243 |
552 |
12x46/0.12 |
4.3 |
2.94 |
3.07 |
59.1 |
|
8 |
7.872 |
696 |
12X 58/0.12 |
4.8 |
2.33 |
2.44 |
74.5 |
|
10 |
10.04 |
888 |
12 X 74/0.12 |
5.3 |
1 .83 |
1.91 |
95.1 |
|
12.5 |
12.46 |
1102 |
19x 58/0.12 |
5.9 |
1 .48 |
1.55 |
118.5 |
|
16 |
15.90 |
1406 |
19x74/0.12 |
6.7 |
1 .16 |
1.21 |
151.2 |
TSR
|
Nominal Cross Section (mm²) |
Calculated cross-sectional area (mm²) |
Construction |
Calculated Outside diameter (mm) |
DC resistance |
Calculated weight Kg/km |
||
|
The number of total single wires |
Number of strands x No.of wires Nominal diameter of a single wire(mm) |
TS |
TSX |
||||
|
0.063 |
0.0628 |
32 |
32/0.05 |
0.5 |
288 |
0.586 |
|
|
0.08 |
0.0785 |
40 |
40/0.05 |
0.55 |
231 |
0.733 |
|
|
0.10 |
0.0982 |
50 |
50/0.05 |
0.6 |
184 |
0.917 |
|
|
0.125 |
0.124 |
63 |
63/0 05 |
0.65 |
146 |
1.16 |
|
|
0.16 |
0.165 |
84 |
7X12/0.05 |
0.7 |
111 |
1.55 |
|
|
0.20 |
0.206 |
105 |
7 X 15/0.05 |
0.8 |
88.7 |
1.92 |
|
|
0.25 |
0.247 |
126 |
7 X 18/0.05 |
1.0 |
74.0 |
2.33 |
|
|
0.315 |
0.316 |
160 |
7X 23/0.05 |
1.1 |
57.8 |
2.95 |
|
|
0.40 |
0.399 |
203 |
7 X 29/0.05 |
1.2 |
45.8 |
3.76 |
|
|
0.50 |
0.495 |
252 |
12 X 21/0.05 |
1.3 |
37.0 |
4.69 |
|
|
0.63 |
0.636 |
324 |
12 X 27/0.05 |
1.5 |
28.9 |
6.02 |
|
|
0.80 |
0.801 |
408 |
12 X 34/0.05 |
1.6 |
22.9 |
7.58 |
|
|
1.00 |
0.990 |
504 |
12 X 42/0.05 |
1.8 |
18.6 |
9.37 |
|
|
1.25 |
1.268 |
646 |
19 X 34/0.05 |
2.0 |
14.5 |
12.1 |
|
|
1.6 |
1.567 |
798 |
19 X 42/0.05 |
2.2 |
11.8 |
14.9 |
|
|
2.0 |
2.015 |
1026 |
19 X 54/0.05 |
2.4 |
9.16 |
19.2 |
|
|
2.5 |
2.500 |
1273 |
19x67/0.05 |
2.7 |
7.38 |
23.8 |
|
|
3.15 |
3.144 |
817 |
19 X 43/0.07 |
3.0 |
5.87 |
29.9 |
|
|
4.0 |
4.022 |
1045 |
19 X 55/0.07 |
3.3 |
4.59 |
38.3 |
|
|
5.0 |
1.927 |
1292 |
19 X 68/0.07 |
3.8 |
3.71 |
47.3 |
|
|
6.3 |
6.288 |
1634 |
19 X 86/0.07 |
4.3 |
2.93 |
59.8 |
|
Manufactured on request in square shape or with rounded edges, either in tinned and bare copper. It is possible to produce 8-fuse constructions from section 0.25 to 20 mm², and 12- fuse constructions from section 6.00 to 60 mm², having strands from 0.05 to 0.20 mm.
ZHEJIANG YIPU METAL MANUFACTURING CO., LTD., Ltd.’s Production and Project managers, coupled with our in-house engineers can guide you through the process preventing unnecessary delays or roadblocks.
● Our state-of-the-art facilities and streamlined production processes enable us to produce high-quality Flexible Copper Stranded Connectors products efficiently and cost-effectively.
● Strive to surpass and pursue excellence is our corporate spirit, which will encourage us to provide users with a better experience with better products, more professional technology, and better after-sales service.
● Our team of experts is always available to provide technical support and advice on our Flexible Copper Stranded Connectors products.
● To continuously increase the administration process by virtue of the rule of 'sincerely, good religion and excellent are the base of company development', we commonly absorb the essence of linked goods internationally, and continually build new solutions to fulfill the requires of shoppers for Copper Stranded Connectors with Welded Ends.
● We are constantly investing in new technology and equipment to stay ahead of industry standards and offer the latest innovations in Flexible Copper Stranded Connectors.
● It is the unremitting pursuit of success that fills us with passion and vitality, and promotes the company's continuous development and innovation.
● We have a strong commitment to customer satisfaction and strive to exceed expectations in every aspect of our Flexible Copper Stranded Connectors products and services.
● Our Copper Stranded Connectors with Welded Ends is scientifically designed and reasonable, with favorable price, excellent quality and durability, and has been praised and appreciated by our customers for a long time, which is a good choice for them.
● We are dedicated to providing our customers with the highest level of product and service quality in the Flexible Copper Stranded Connectors industry.
● Relying on the comprehensive advantages of our own talents and technology, we produce Copper Stranded Connectors with Welded Ends with stable performance and reliable quality. At the same time, we have won unanimous praise from consumers with our enthusiastic service.
