Copper Bus-bar Expansion Joint
  • Copper Bus-bar Expansion JointCopper Bus-bar Expansion Joint
  • Copper Bus-bar Expansion JointCopper Bus-bar Expansion Joint
  • Copper Bus-bar Expansion JointCopper Bus-bar Expansion Joint

Copper Bus-bar Expansion Joint

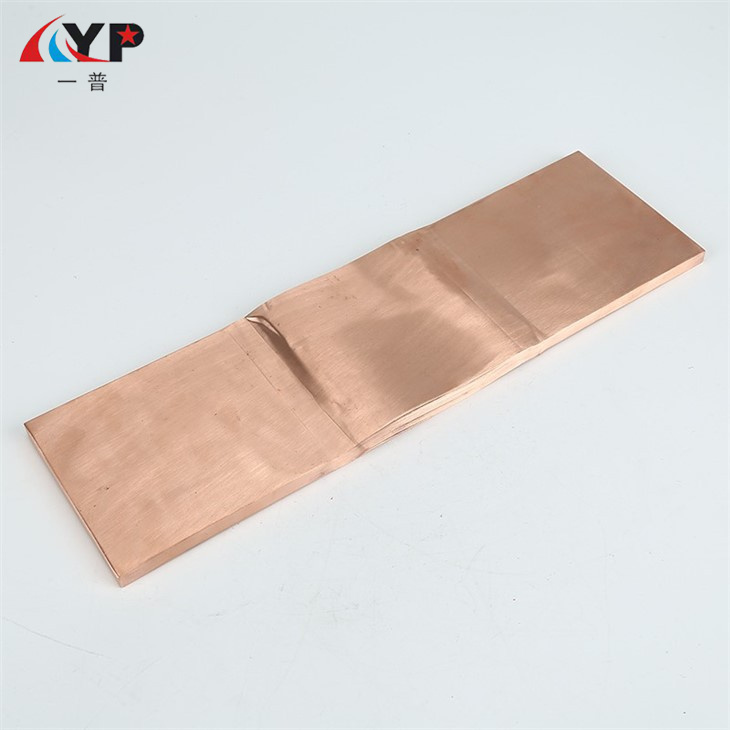

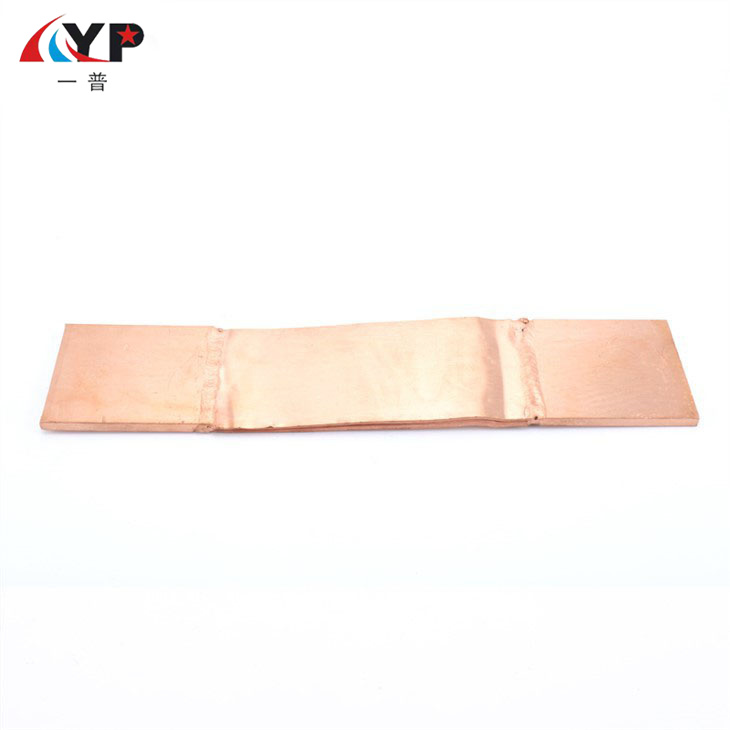

You can rest assured to buy Yipu Copper Bus-bar Expansion Joint from our factory. Copper bus-bar expansion joint is made by superposing a single piece of red copper foil with a thickness of 0.03mm-0.50 mm, through polymer diffusion welding of the overlapping surface. Copper foil soft connection has high density and good flexibility.

Dear valued merchants, We are thrilled to introduce our newest product, the Copper Bus-bar Expansion Joint!

As a leading manufacturer located in China, we have gradually earned the trust of our clients worldwide, having been in this business for some time now. Our company is known for its quality products and excellent services, making us one of the most respected and sought-after manufacturers in the market today.

At the core of our business is our commitment to providing reliable and high-quality products, and the Copper Bus-bar Expansion Joint is no exception. This product is specifically designed to meet the needs of clients who require a product that can withstand extreme temperatures and heavy usage.


Here are some of the aspects of the Copper Bus-bar Expansion Joint that we believe will interest merchants:

1. Quality and Durability

We understand that as a merchant, you want to invest in products that are made to last, and that is precisely what our Copper Bus-bar Expansion Joint offers. It is made from high-quality copper, providing excellent electrical conductivity and thermal stability.

The product has undergone rigorous testing to ensure that it can withstand extreme temperatures and pressure, making it an ideal solution for demanding environments like power plants and industrial settings.


2. Versatility and Flexibility

Our Copper Bus-bar Expansion Joint is highly versatile and can be customized to meet the specific needs of our clients. We understand that every project has unique requirements, and that is why we offer customized solutions to meet your needs.

We can customize this product in terms of size, shape, and other specifications to meet your unique requirements. We are committed to working closely with our clients to ensure that we provide products that meet their specific needs.


3. Easy to Install

Our Copper Bus-bar Expansion Joint is designed to be easy to install, saving you time and money in the process. It comes with all the required hardware, making the installation process quick and hassle-free.


4. Cost-Effective

At our company, we understand that keeping costs low is a significant concern for our clients. That is why we strive to provide products that are not only high-quality but also cost-effective.

Our Copper Bus-bar Expansion Joint is priced competitively, allowing you to invest in a high-quality product without breaking the bank. This is an excellent investment for clients who want to maximize their returns without compromising on the quality of the products they purchase.


5. Environmentally Friendly

Finally, we are proud to say that our Copper Bus-bar Expansion Joint is also environmentally friendly. It is made from recycled copper, which reduces the carbon footprint of your project while helping to protect the environment.


Conclusion

In summary, the Copper Bus-bar Expansion Joint is a top-quality, versatile, and customizable product that provides a cost-effective solution for clients looking for durable and reliable electrical components. It is easy to install, environmentally friendly, and ideal for use in a wide variety of applications.

If you are interested in purchasing this product or learning more about our other products, please don't hesitate to contact us. We would be more than happy to answer any questions you may have and provide you with a quote. We look forward to working with you soon!


Copper Bus-bar Expansion Joint Description

Product Name

Bus-bar expansion joint

Product Category

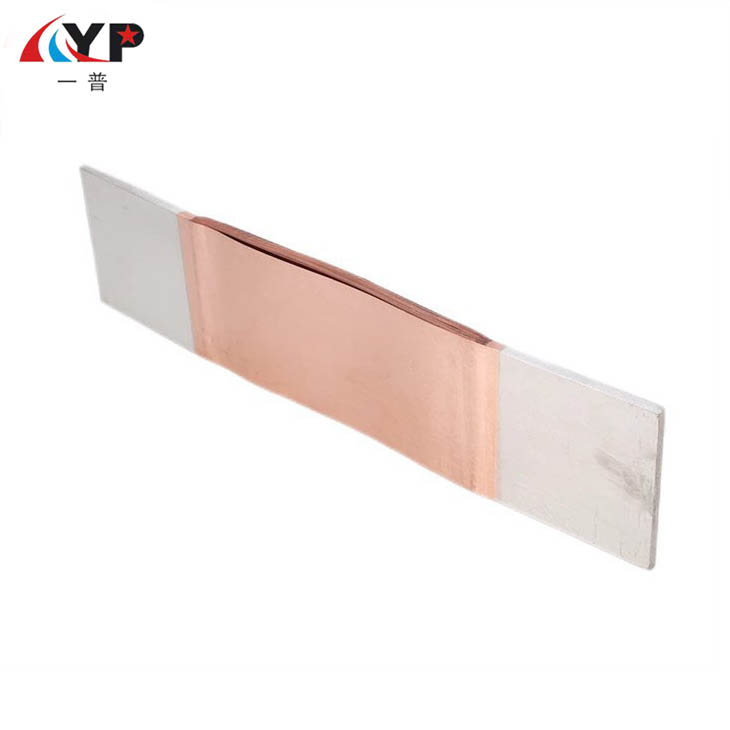

Bare copper / Tin plating on both ends / Full tin plating

Function

Flexible conductive connection, play an elastic protection role, improve the conductivity, adjust the equipment installation error, (shock absorption) work compensation operation, and facilitate inspection and equipment maintenance

Characteristic

Good flexibility, easy heat dissipation, bending resistance, strong conductivity, convenient installation

Scope of application

Various generator, transformer, switch, electrolysis, smelting and other high-current electrical equipment


Copper Bus-bar Expansion Joint Overview

Copper bus-bar expansion joint is made by superposing a single piece of red copper foil with a thickness of 0.03mm-0.50 mm, through polymer diffusion welding of the overlapping surface. Copper foil soft connection has high density and good flexibility.


Copper Bus-bar Expansion Joint Specification


Item No.

Main Dimensions (mm)

A

L1

L2

B

MST-4x40

40

60

170

4

MST-5x50

50

70

170

5

MST-6x60

60

80

190

6

MST-6.3x63

63

80

190

6.3

MST-6x80

80

90

190

6

MST-8x80

80

90

190

8

MST-10x80

80

90

190

10

MST-8x100

100

115

220

8

MST-10x100

100

115

220

10

MST-10x120

120

140

220

10

MST-10x125

125

140

220

10

MST-12x120

120

140

220

12

MST-12x125

125

140

220

12

MST-12.5x125

125

140

220

12.5


Application

It is commonly used for bus duct, transformer installation, high and low voltage switch cabinet, vacuum apparatus, generator and bus, rectifier equipment, connection between rectifier cabinet and disconnector, and connection between bus. It can also be used for soft bridging on automobiles, motor cars, and locomotives.


Custom instructions

1. Sectional area or rated current of copper flexible connection.

2. Total length, distance between holes, joint length of copper flexible connection.

3. Width of copper flexible connection.

4. Thickness of copper flexible connection.

5. Electroplating requirements for copper flexible connection.

6. Insulation requirements of copper flexible connection.

7. Quantity of copper flexible connections.


FAQ

Q1. What can you buy from us?

Copper braided wires and stranded wires, wiring harness, high temperature wire, etc.


Q2. What is your terms of packing?

A: Generally, we pack our goods in reel and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.


Q3. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.


Q4. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.


Q5. How about your delivery time?

A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q6. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.


Q7. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the the courier cost.
