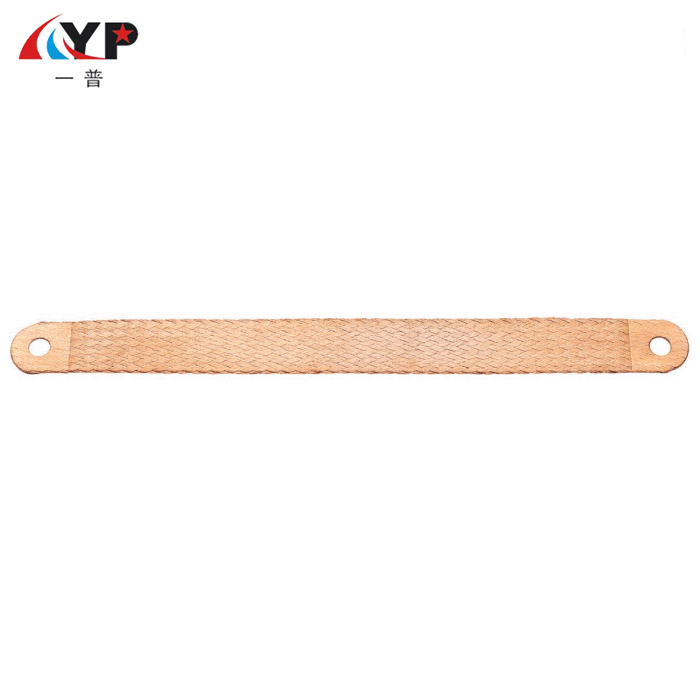

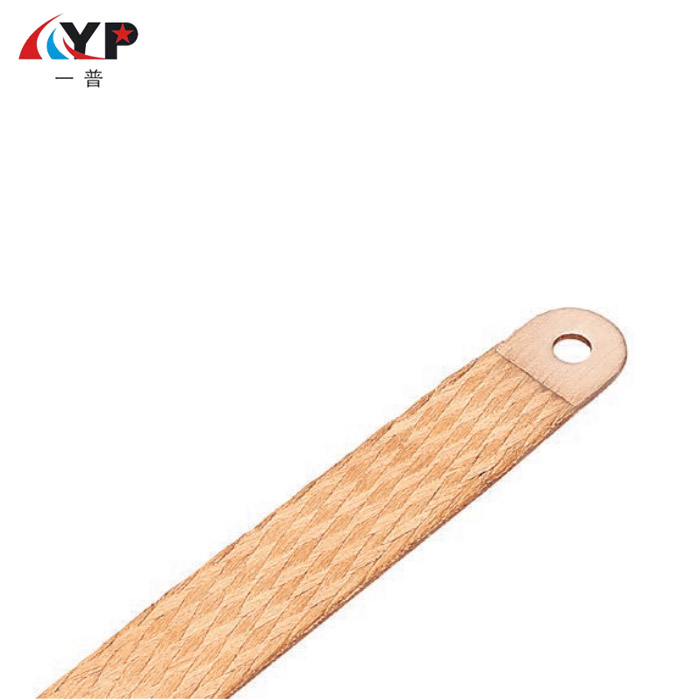

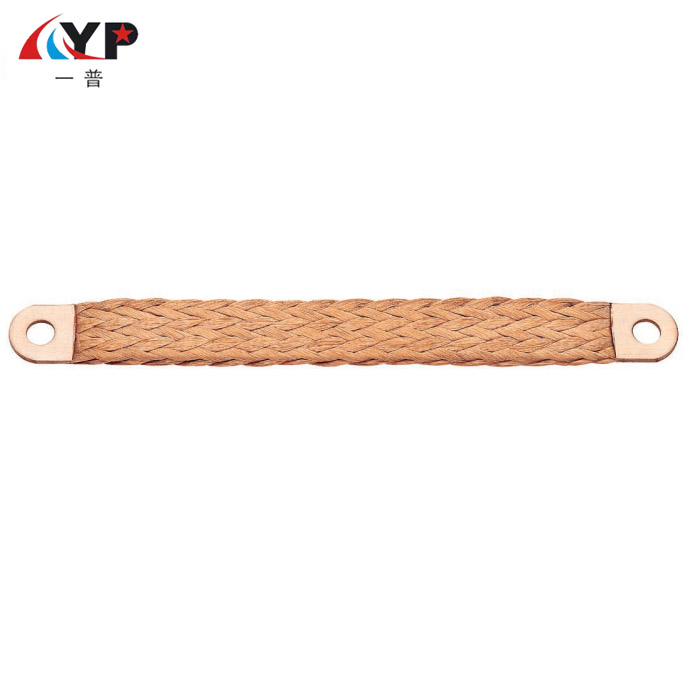

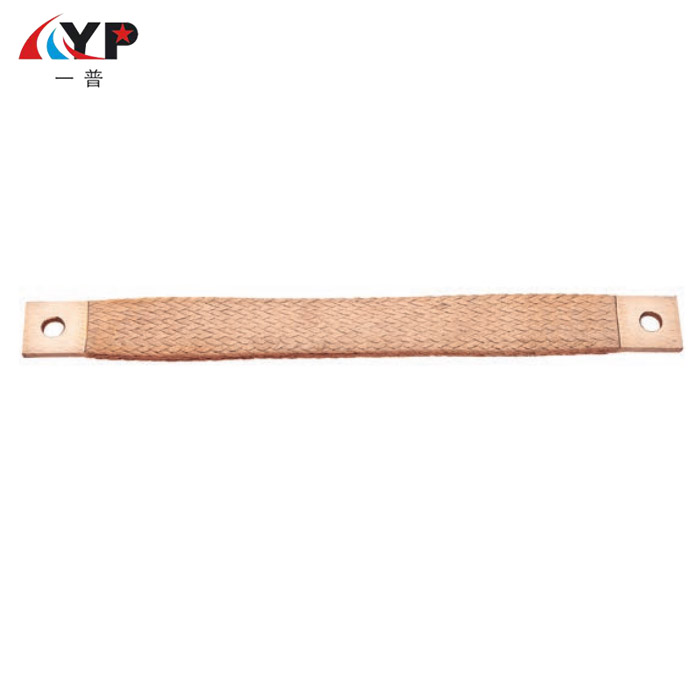

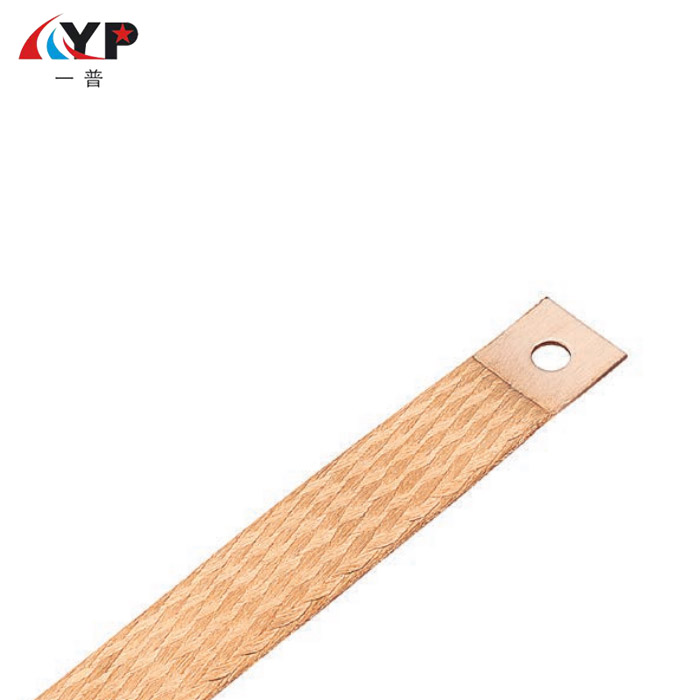

Copper Braided Grounding Wire

Copper braided grounding wire plays a critical role in electrical systems by providing a low impedance path to ground. It is a form of flexible and flat wire consisting of multiple small copper wires that are braided together, creating a large surface area for electrical conductivity. The braided structure of the wire allows it to be flexible and easily molded into complex shapes as needed. The copper braided grounding wire typically consists of bare or tinned copper wires, which are either round or flat.

Copper Braided Grounding Wire Features:

1. High conductivity: Copper braided grounding wire has a very high electrical conductivity, making it an ideal option for grounding applications.

2. Flexibility: The braided structure of the copper wire allows it to be easily molded into complex shapes.

3. Durability: Copper braided grounding wire is highly resistant to corrosion and remains functional for a longer period.

4. Low impedance: Copper braided grounding wire offers an extremely low impedance path to ground, which helps in maintaining the integrity of the system.

5. Wide range of diameter: Copper braided grounding wire comes in a variety of diameters, allowing it to be used in a wide range of applications.

Copper Braided Grounding Wire Advantages:

1. Better conductivity: Copper braided grounding wire offers better conductivity than other grounding options.

2. Durability: Copper braided grounding wire is expected to last long because it is resistant to corrosion.

3. Low maintenance: Copper braided grounding wire is low maintenance as it needs less upkeep than other types of grounding options.

4. Easy installation: The braided structure of copper grounding wire makes it easy to install and customize according to specific requirements.

5. Cost-effective: Copper braided grounding wire is a cost-effective option relative to other grounding options.

Copper Braided Grounding Wire Applications:

Copper braided grounding wire is used in various industries, including:

1. Telecommunication sector

2. Power generation and distribution facilities

3. Marine/naval installations

4. Petrochemical installations

5. Data centers

6. Electronics manufacturing

7. Aerospace applications

FAQ

Q1. What is the difference between copper braided grounding wire and a solid grounding wire?

A: Copper braided grounding wire contains multiple small wires that are braided together, whereas a solid grounding wire is a single, solid wire. Copper braided grounding wire has a larger surface area for electrical conductivity than a solid wire, making it a better option for grounding applications.

Q2. Can copper braided grounding wire be used in outdoor applications?

A: Yes, copper braided grounding wire is suitable for outdoor applications. However, it is recommended to use tinned copper braid for outdoors to avoid corrosion due to atmospheric moisture.

Q3. How does the diameter of copper braided grounding wire affect its performance?

A: The diameter of copper braided grounding wire determines the current-carrying capacity it can handle. The larger the diameter, the higher the current-carrying capacity.

Q4. Can copper braided grounding wire be used for lightning protection?

A: Yes, copper braided grounding wire can be used for lightning protection. It has a low impedance path to ground, providing an adequate connection for dissipating the lightning discharge current.

Q5. How is copper braided grounding wire installed in a system?

A: Copper braided grounding wire can be installed using mechanical connectors, crimps, or welding. It can also be bonded with compatible adhesives in some cases. It is essential to ensure the wire is correctly bonded to the system to ensure a reliable electrical connection to ground.
