Copper Braided Connectors with Welded Ends
  • Copper Braided Connectors with Welded EndsCopper Braided Connectors with Welded Ends
  • Copper Braided Connectors with Welded EndsCopper Braided Connectors with Welded Ends
  • Copper Braided Connectors with Welded EndsCopper Braided Connectors with Welded Ends

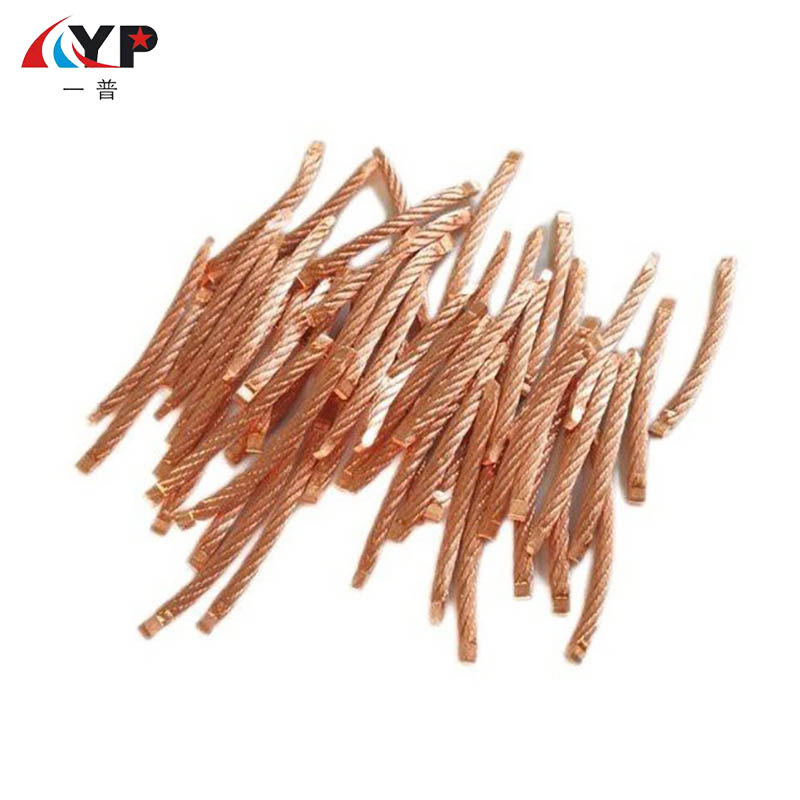

Copper Braided Connectors with Welded Ends

Buy Copper Braided Connectors with Welded Ends which is of high quality directly with low price. The square flexible copper braided wire produced by our company has reached the world advanced world standard through lean production of more than ten processes.

Copper Braided Connectors with Welded Ends are a vital component for distributing power in electrical systems. They are designed to help connect two or more metal components, ensuring that the electrical system designed functions smoothly and efficiently.


These connectors are made from high-quality copper braids, which are woven tightly and meticulously to form a strong and durable product. The copper braids have a high level of conductivity, making them a perfect fit for electrical systems that require high levels of power supply. At the end of each braid is a welded metal connector, which offers an additional layer of strength and durability to the product.


One of the unique features of Copper Braided Connectors with Welded Ends is their flexibility. The braids are incredibly flexible, ensuring that they can accommodate bend and fit around even the most complex corners and shapes of a system. This flexibility makes them ideal for use in different types of electrical systems, making them versatile and suitable for use in a wide range of applications.


Furthermore, Copper Braided Connectors with Welded Ends can withstand extreme environments. They are suitable for use in high-temperature environments, where other materials would fail. The product has remarkable resistance to heat, ensuring that it can function optimally even in the harshest environments. Their sturdy build and high-level conductivity of copper make them ideal for use in applications that require an A+ performance.


Copper Braided Connectors with Welded Ends offer exceptional electrical conductivity, ensuring that the electrical system operates efficiently without experiencing any interruptions. The connectors can withstand high levels of electrical current while maintaining sufficient levels of contact resistance. This exceptional feature makes them ideal for use in electrical systems that require a consistent and reliable power supply.


The product is also easy to install, saving time and money for suppliers and users alike. The Copper Braided Connectors with Welded Ends comes with simple installation instructions, and the connectors are designed to fit seamlessly into most electrical systems. This ease of installation ensures that the product can be quickly and efficiently integrated into the system, reducing downtime and saving on installation costs.


In conclusion, Copper Braided Connectors with Welded Ends provide an excellent solution for distributing power in electrical systems. They are made from high-quality copper braids, which offer high-level conductivity, flexibility, and durability that ensure optimal performance. The connectors are engineered to work efficiently even in the harshest of environments, making them ideal for use in a wide range of applications. Their straightforward installation, high conductivity, and flexibility prove our claim to be cost-effective and make Copper Braided Connectors with Welded Ends an irreplaceable component of an electrical system. Our product is the ultimate choice for merchants who are looking for a reliable and durable product that meets their customers' demands and exceeds their expectations.


Advantage of Copper Braided Connectors with Welded Ends

The square flexible copper braided wire produced by our company has reached the world advanced world standard through lean production of more than ten processes. Advantages of our copper braided wire and flexible copper stranded wire: good softness, bright color, strong oxidation resistance.

Advanced copper drawing and metal heat treatment technology enable us to give you the best products


Technical Data

Material

T1 copper (or T2, T3, TU1, TU2 etc.)

Main Process

cut,punch,stamp,drill,twist,test

Busbar thickness

1mm,2mm,3mm or other

Insulation

heat shrink sleeve/pvc dip/bare copper

Other dimension

as to confirmed drawing

Surface treatment

Bare copper or tinned plated

Insulation

heat shrink sleeve/pvc dip/bare copper

Size

As customer’s request

Delivery

5-7days

Color

Red or white

OEM

custom all types of bus bars

Drawing

customized design is acceptable.


Plating

tin/nickle/silver/others

Advantages

Professional staff and designer with many years experience

Warranty

20 years

Features

Pure copper wire99.9%


Cross Sectional Area: 0.2mm² - 300mm²

Packing Modes: in rolls, on spools or wooden drums


Model selection

TZ-15 TZX-15

Section mm²

Structure

Size mm

Calculated weight

Standard

Calculated

No.of strands x No.of wire x layers/ single wire diameter

(mm)

Width

Thickness for reference

(mm)

kg/km

Nominal Cross Section (mm' )

Construction

No.of strands x No.of wire x layers/single wire diameter(mm)


Width

Thickness

(mm)

Calculated Weight

(kg/km)

Nominal Cross Section

(mm')

2

2.12

24x5x1/0.15

5.0

1.0

21

2.5

2.54

25x6x 1/0.15

6.0

1.0

25.4

3.5

3.18

36x6x 1/0.15

8.0

1.5

32

4

4.24

24x10x1/0 15

7.0

1.5

43

6

6.36

36 X 10 X 1/0 15

1 1.0

1.5

64

8

8.45

48 X 10 X 1/0 15

13.0

1.2

85

10

10.60

40 X 15 X 1/0 15

1 5.0

2.0

106


10.18

48 X 12 X 1/0 15

16.0

1.5

102

12

1 2.72

48 X 15 X 1/0 15

18.0

1.8

1 28

16

16.96

48x20x 1/015

22.0

2.0

1 70

20

21.20

48x25x 1/015

25.0

2.0

212

25

25.45

48x30x 1/015

28.0

3.0

254


25.45

48x15x2/0 15

20.0

3.5

254

35

33.93

64x30x 1/015

40.0

2.2

340


33.93

48 X 20 X 2/0 1 5

26.0

3.2

340

50

50.87

65x45x 1/0.15

50.0

3.0

510


50.87

48 X 30 X 2/0.1 5

30.0

3.2

510


50.89

48 X 20 X 3/0.15

28.0

4.8

510

75

76.34

96x45x 1/0.15

32.0

3.5

765


76.34

48 X 30 X 3/0.15

36.0

5.0

765

95

95.00

48 X 28 X 4/0.15

35.0

6.0

950

100

100.09

96x59x 1/0.15

80.0

4.0

1000

120

127.23

48 X 30 X 5/0.15

42.0

7.0

1272


Our production line

We have professional production line.

In order to improve the quality of products, the company introduced domestic advanced production equipment and first-class testing equipment. The equipment is mainly automatic and semi-automatic, and the systematization and standardization of the product testing link are realized.

For the company to produce excellent performance of first-class products laid the foundation.

At present, the annual production capacity is over 1500 tons.

The annual output value can reach 60 million yuan.
