At present, electrical connectors have become an essential part of almost all electrical and electronic applications. The flow of electricity, signal transmission, and power distribution all depend heavily on connectors. As a leading manufacturer of electrical connectors based in China, we specialize in producing high-quality electrical flat wire connectors. Among our top-rated products is the Braided Electrical Flat Wire Connector, which has been designed to meet the electrical connectivity demands of various industries.

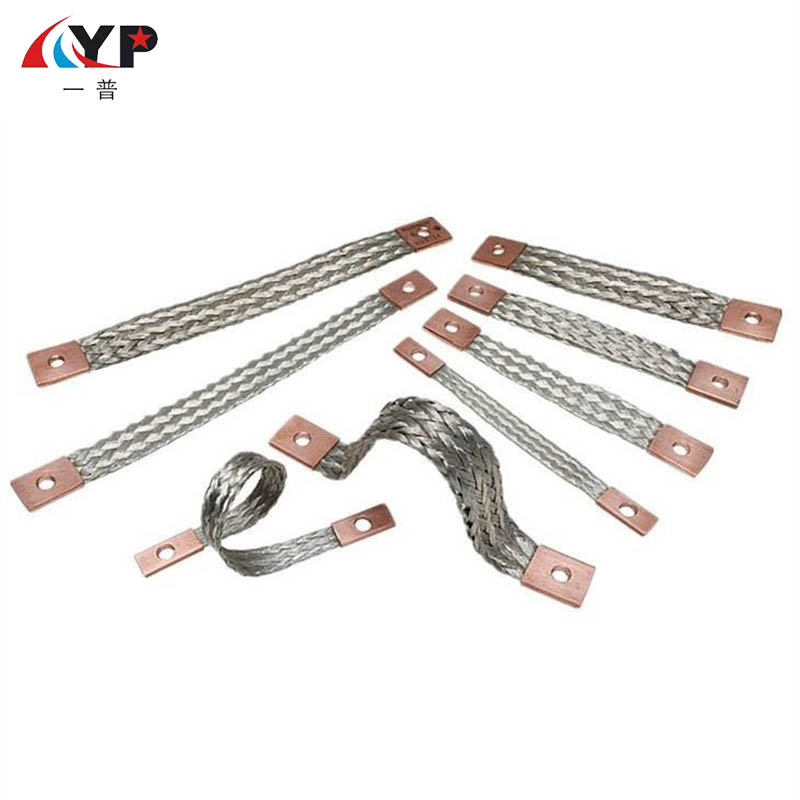

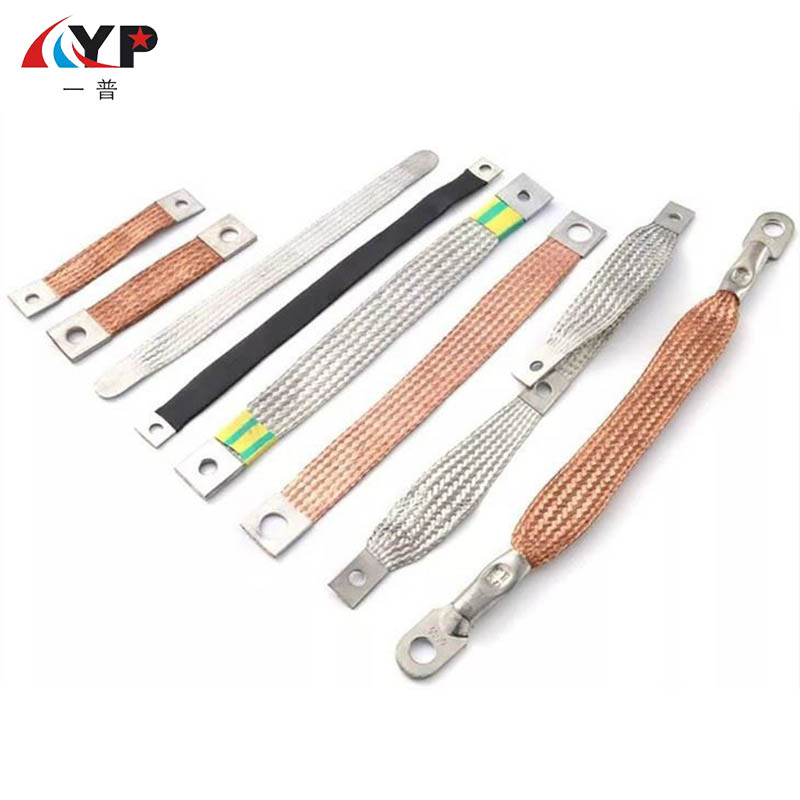

The Braided Electrical Flat Wire Connector is a reliable, heavy-duty connector designed to offer a secure electrical connection that delivers constant power stability. Featuring a unique braided copper design, this connector ensures excellent conductivity even under high voltage, making it ideal for commercial, industrial, and residential applications.
Strength:
Our Braided Electrical Flat Wire Connector is made of high-quality pure copper metal, which provides maximum strength and durability, allowing it to withstand wear and tear over time. It also features a flat wire design with an extensive surface area that effectively spreads current, limiting electrical resistance and reducing heat buildup that can cause damage to electrical equipment. Additionally, we use high-quality insulating materials in our connectors, which enhances the durability, performance, and safety aspects of the connector.
Versatile:
Our Braided Electrical Flat Wire Connector is a versatile connector that can be used in various applications such as air conditioning, refrigerators, induction cookers, and distribution boxes, to name a few. Its design allows it to be compatible with various wire sizes, making it ideal for numerous electrical applications.
Ease-of-Use:
Our Braided Electrical Flat Wire Connector has a straightforward design and installation process that can be accomplished without professional help. The connector's body is designed to be self-aligning, ensuring that the wires remain secure within the connector, with proper strain relief.
Certified:
Our Braided Electrical Flat Wire Connector has been certified by various international regulatory authorities, including CE certification, RoHS certification, UL certification, and ISO certification, among others. These certifications are an assurance of our product's quality, reliability, durability, and safety.
Cost-Effective:
Our Braided Electrical Flat Wire Connector is an affordable product that guarantees high quality, durability, reliability, and safety, making it a value-for-money investment. Its unique design and excellent conductivity also make it energy efficient, which results in reduced energy consumption and lower costs.
Whether you are an end-user, distributor, or retailer looking for a reliable, durable, and safe electrical connector, you can count on our Braided Electrical Flat Wire Connector. Our product has a unique design, exceptional strength, versatility, easy installation, affordability, and certification, making it ideal for various commercial, industrial, and residential applications. Contact us today to place your order and experience the difference in quality, performance, and customer service.
|
Material |
pure copper or tinned copper |
|
Diameter |
custom made |
|
Life |
≥50 years |
|
Characters |
Easy installation ,Good conductivity |
|
Available service mode |
OEM,ODM |
|
Certificate |
ISO9001:2015 |
|
Product specifications |
Area (mm²) |
Size (mm) |
Max wide (mm) |
Max thickness (mm) |
Weight (kg/km) |
|
TZ(X)-15/10 |
10.60 |
40×15×1/0.15 |
15.0 |
2.0 |
106 |
|
TZ(X)-15/10 |
10.18 |
48×12×1/0.15 |
16.0 |
1.5 |
102 |
|
TZ(X)-15/12 |
12.72 |
48×15×1/0.15 |
18.0 |
1.8 |
128 |
|
TZ(X)-15/16 |
16.96 |
48×20×1/0.15 |
22.0 |
2.0 |
170 |
|
TZ(X)-15/20 |
21.20 |
48×25×1/0.15 |
25.0 |
2.0 |
212.5 |
|
TZ(X)-15/25 |
25.45 |
48×30×1/0.15 |
28.0 |
3.0 |
254 |
|
TZ(X)-15/25 |
25.45 |
48×15×2/0.15 |
20.0 |
3.5 |
254 |
|
TZ(X)-15/35 |
33.93 |
64×30×1/0.15 |
40.0 |
2.2 |
340 |
|
TZ(X)-15/35 |
33.93 |
48×20×2/0.15 |
26.0 |
3.2 |
340 |
|
TZ(X)-15/50 |
50.87 |
64×45×1/0.15 |
50.0 |
3.0 |
510 |
|
TZ(X)-15/50 |
50.87 |
48×30×2/0.15 |
30.0 |
3.2 |
510 |
|
TZ(X)-15/50 |
50.89 |
48×20×3/0.15 |
28.0 |
4.8 |
510 |
|
TZ(X)-15/75 |
76.34 |
80×54×1/0.15 |
32.0 |
3.5 |
765 |
|
TZ(X)-15/75 |
76.34 |
48×30×3/0.15 |
36.0 |
5.0 |
765 |
|
TZ(X)-15/95 |
95.00 |
48×28×4/0.15 |
35.0 |
6.0 |
950 |
|
TZ(X)-15/100 |
100.09 |
96×59×1/0.15 |
80.0 |
4.0 |
1000 |
|
TZ(X)-15/120 |
127.23 |
48×30×5/0.15 |
42.0 |
7.0 |
1271.80 |
Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.
Our Braid Assemblies are an economical and efficient means of protecting electrical equipment from the protentially harmful effects of:
Shock and vibration
Terminal or connection area expansion due to temperature changes
Movement of components
Misalignment that may occur during the service life of electrical equipment and machinery
Seasonal movement of outdoor equipment

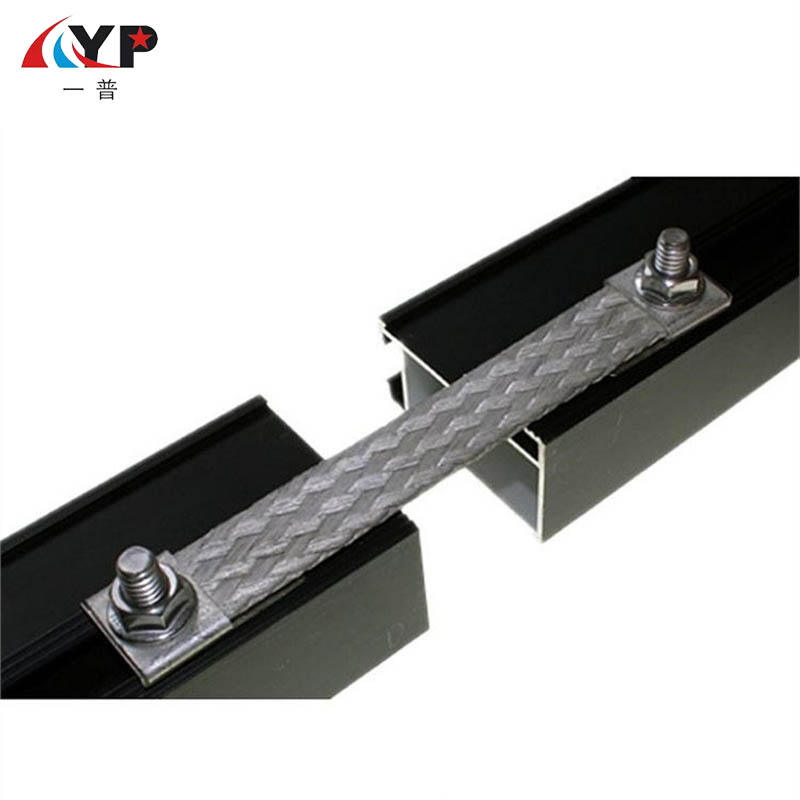

From shunts and power shunts to grounding jumpers, busbar connections, flexible leads , bonding straps , cable jumpers and flexible gate jumper-braid assemblies are referred to by many names.
1.Are you a trading company or manufacturer?
Manufacturer with factory!
2.Is Customized Material available?
Yes, please offer your required specs.
3.Do you Accept OEM service?
YES!
4.What's your Delivery Time?
Normally 20-25days,please confirm with us before order!
● We believe in building long-term partnerships with our customers based on mutual trust and respect.
● With the continuous growth of the company, the company's investment in technology development, production equipment, quality assurance and other aspects continues to improve.
● We always stand behind our products and are committed to providing our customers with the best possible experience.
● We have a wide range of Braided Electrical Flat Wire Connector to meet different needs, revealing our humanized design everywhere and showing the professionalism of our products in every process.
● We have strict quality control measures in place to ensure the consistent high quality of our Flexible Copper Braided Connectors.
● We develop, manufacture and sell Braided Electrical Flat Wire Connector and related accessories, at the same time, we also provide professional solutions. We have gained wide acclaim for our knowledge, technology, and professionalism. In addition, our products are continuously developed in-house and use the best raw materials, which is something we are very proud of.
● Our team of experts is dedicated to producing Flexible Copper Braided Connectors that are reliable and long-lasting.
● Our vision is to be the preferred and reputable supplier for our regular customers.
● Our Flexible Copper Braided Connectors are designed for a wide range of applications and are suitable for use in harsh environments.
● Relying on scientific and technological innovation, our company continues to catch up with and surpass our domestic counterparts, and moves forward towards the goal of modern management, product diversification and benefit maximization.
